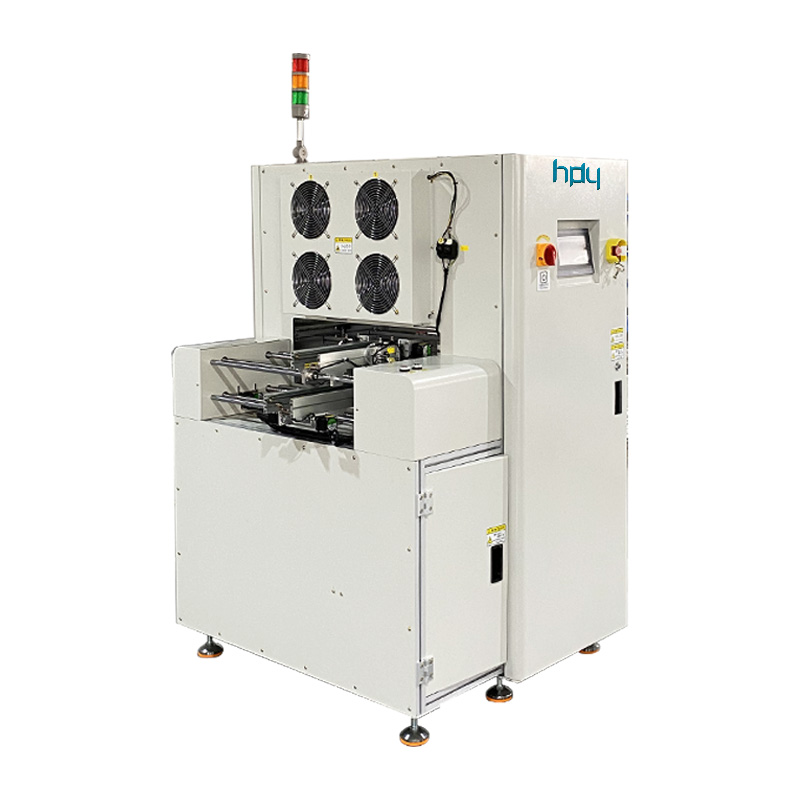

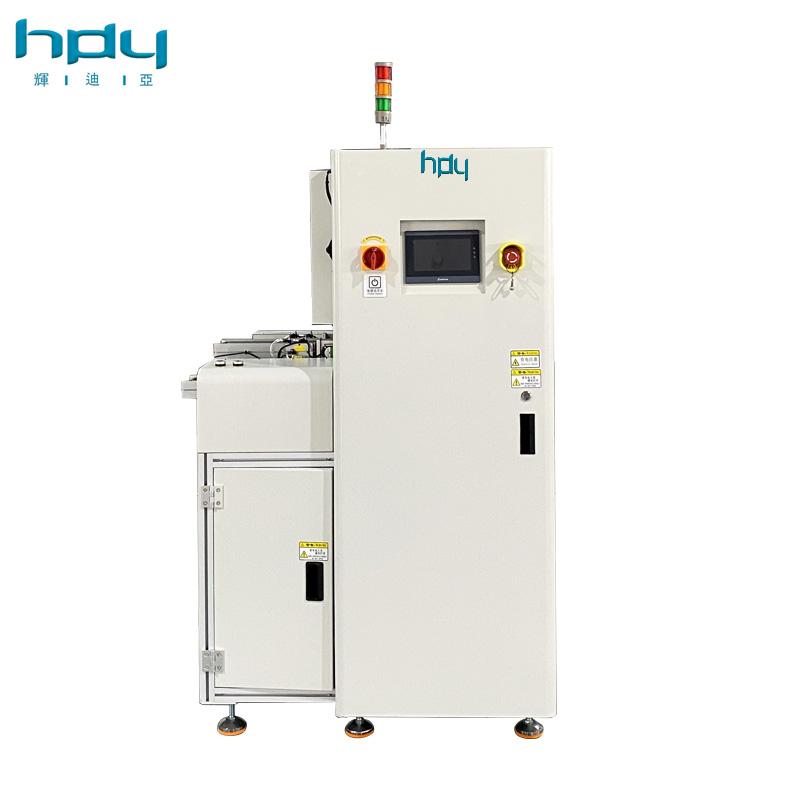

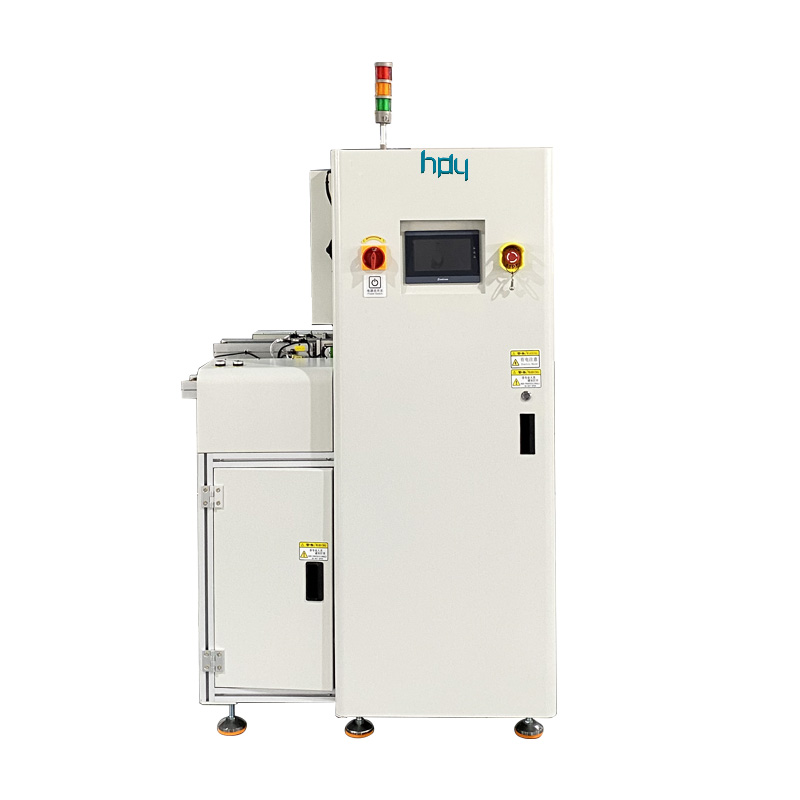

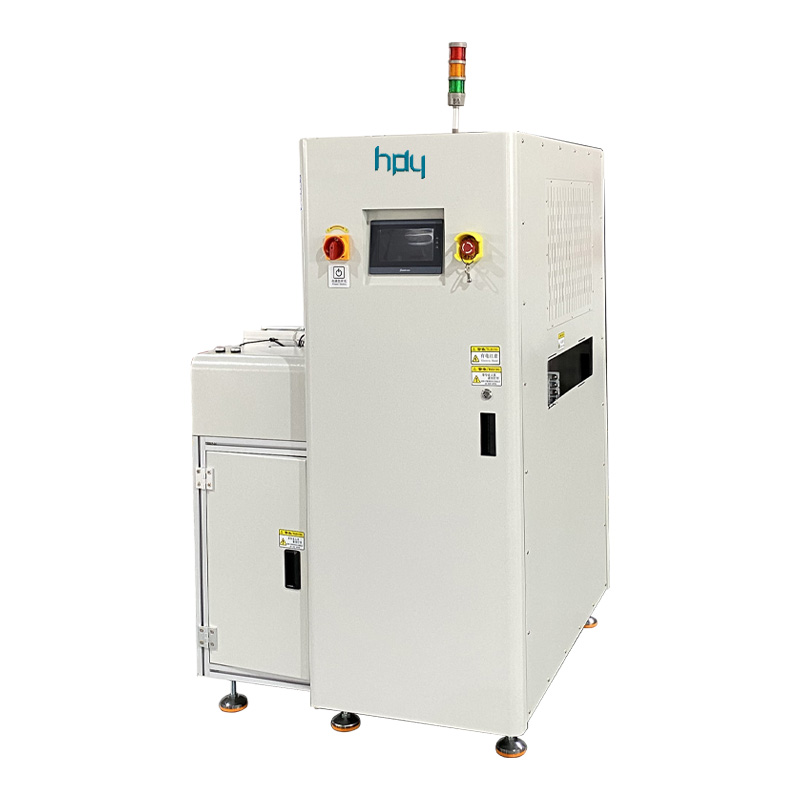

The HDY-460 Single-Lane Buffer Machine is a mid-line buffer device designed specifically for SMT production lines. It is primarily used between AOI (Automated Optical Inspection) and SPI (Solder Paste Inspection) processes for intelligent buffering management of NG (defective) and OK (good) PCBs.
Specification
| Item | Specification |
| Model | HDY-460 Single-Lane (AOI / SPI NG Buffer) |
| Purpose | NG/OK buffer between SMT machines |
| Dimensions | L1100 × W1250 × H1650 mm |
| Frame | Custom sheet metal frame |
| Magazine | Custom multi-layer conveyor belt wear-resistant aluminum alloy magazine |
| Drive | Huichuan servo motor for step-up/down lifting; 2 guide rods on each side for balance |
| Conveyor | Stepper motor driven, automatic width adjustment |
| Lead Screw | Precision ball screw |
| PCB Size | Max. (L)500mm × (W)50–460mm |
| Board Flow Direction | Left to Right |
| Transfer Height | 920 ± 30 mm |
| Max Storage Capacity | 20 boards |
| Pass-Through Mode | Yes |
| NG Signal Selection | Multiple logic options available |
| OK/NG Storage | Settings Count and time configurable for both OK and NG boards |
| Belt Pitch Options | 25mm / 50mm |
| Transport Type | Multi-layer O-ring belt; dual-stage shuttle at entrance |
| Storage Flexibility | Flexible OK and NG storage count |
| Controller | Panasonic PLC with auto alarm function |
| FIFO Function | Yes, with NG board discharge capability |
| Touch Screen | 7-inch Weinview |
| Power Supply | 220V AC, 50Hz |
| Power / Relay Brands | Mean Well power supply, Omron relays |
| EHS Compliance | Yes |
| Electrical Cabinet | Included (1 set) |
Equipment Introduction:
The HDY-460 Single-Lane Buffer Machine is a mid-line buffer device designed specifically for SMT production lines. It is primarily used between AOI (Automated Optical Inspection) and SPI (Solder Paste Inspection) processes for intelligent buffering management of NG (defective) and OK (good) PCBs.
The machine is controlled by a Panasonic PLC system, paired with a Huichuan servo motor and precision ball screw for smooth magazine lifting and accurate positioning. It features a 7-inch Weinview touch screen for intuitive operation. The unit supports pass-through mode, FIFO (First-In-First-Out) buffering, and independent NG board discharge, effectively improving line flexibility and efficiency.
Product advantages over competitors
| Feature | HDY-460 | Common Competitor Models |
| Drive System | Huichuan servo motor + precision ball screw, smooth lifting & precise positioning | Some use stepper motors + chain drives, less stable and accurate |
| Control System | Panasonic PLC + 7" Weinview touch screen, internationally recognized brand | Some use low-end domestic PLC or smaller screens, limited expandability |
| Width Adjustment | Automatic stepper motor adjustment, no manual intervention needed | Some require manual width change, longer changeover time |
| Guide Rods | 2 guide rods on each side for better magazine stability | Some have insufficient or no guide rods, prone to vibration and jams |
| Belt Design | Multi-layer O-ring belt + dual-stage shuttle at entrance, smooth board transfer | Single-layer or basic belts, prone to wear and board jams |
| Storage Flexibility | Independent count & time settings for OK and NG boards | Some support only fixed counts, not adjustable |
| NG Signal Logic | Multiple NG signal selection modes, compatible with various AOI/SPI outputs | Some support only single logic, poor compatibility |
| Electrical Components | Mean Well power supply + Omron relays, guaranteed quality | Some use generic components, higher failure rate |
| EHS Compliance | Fully compliant with EHS requirements | Some do not clearly specify compliance |
产品应用
1.Post-AOI Buffering — After AOI inspection, OK boards proceed to next process; NG boards are temporarily stored for manual review or rework
2.Post-SPI Buffering — Similarly after SPI, isolate NG boards to prevent defects from entering the pick-and-place process
3.Line Balancing — When upstream and downstream speeds differ, the buffer absorbs throughput fluctuations and reduces downtime
4.Offline Repair — NG boards are collected centrally without disrupting main line production
Typical Line Layout:
Printer → SPI → HDY-460 Buffer → Pick & Place → Reflow Oven → AOI → HDY-460 Buffer → Unloader
Company Profile
Huidiya Electronics Technology Co., Ltd.
A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China
As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.
Core Competencies
Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.
End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.
Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.
Product Portfolio
Our extensive range of standardized and customized EMA equipment includes:
SMT Handling Systems:
SMT Loader/Unloader
Transfer Station
PCB Buffer Machine
PCB Processing Equipment:
Flip Machine
PCB Cleaner
Corner Router
Vacuum Feeder
Quality Control Systems:
NG/OK Screening Machine
Automated Inspection Station
Specialized Machinery:
Stacker/Conveyor System
Customized Transfer Solutions
Customization Services
We specialize in tailored EMA solutions to meet unique production requirements, including:
Modular Design: Configurable workstations for diverse PCB sizes and component densities.
Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.
Rapid Prototyping: Accelerated development cycles for new product launches.、
Why Partner With Huidiya?
Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.
Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.
After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.
Contact Us Today
Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:
Email: [email protected]
Tel: +86-13143286318
FAQ
Q1: What is the maximum PCB size supported by HDY-460?
A: Max. PCB length 500mm, width 50-460mm.
Q2: What is the maximum storage capacity?
A: Up to 20 boards.
Q3: How to set OK and NG board storage parameters?
A: Via the 7-inch touch screen, you can independently set OK board count/time and NG board count/time. Simple and intuitive.
Q4: Does it support pass-through mode?
A: Yes. When buffering is not needed, select pass-through mode so PCBs pass directly without entering the magazine.
Q5: How does the NG signal interface with AOI/SPI?
A: The machine offers multiple NG signal selection modes, allowing flexible configuration based on AOI/SPI output signal types. Highly compatible.
Q6: Does the machine support FIFO (First-In-First-Out)?
A: Yes. The FIFO function ensures PCBs enter and exit in order, meeting process traceability requirements.
