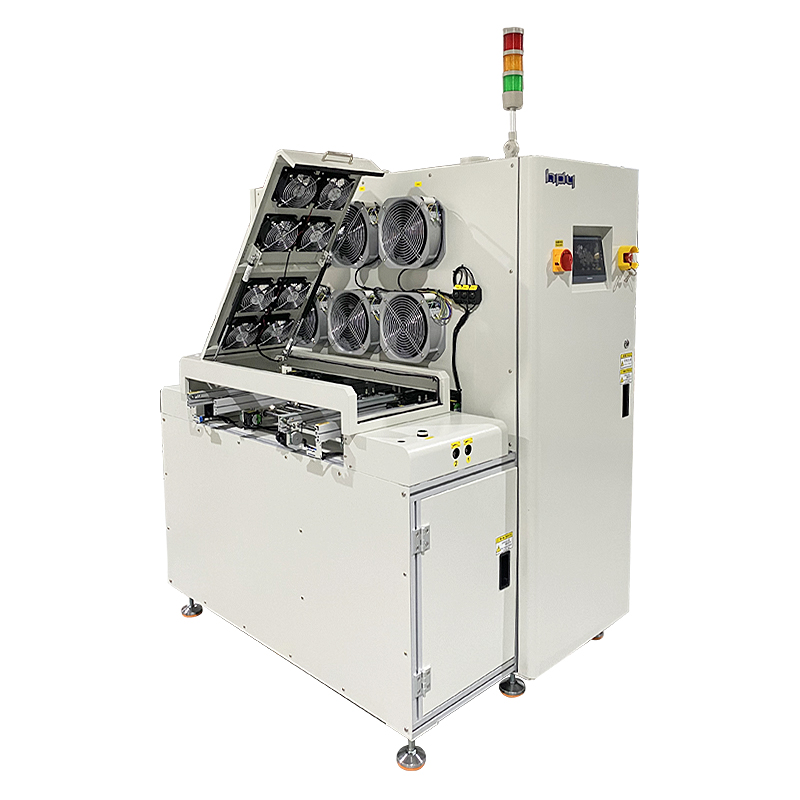

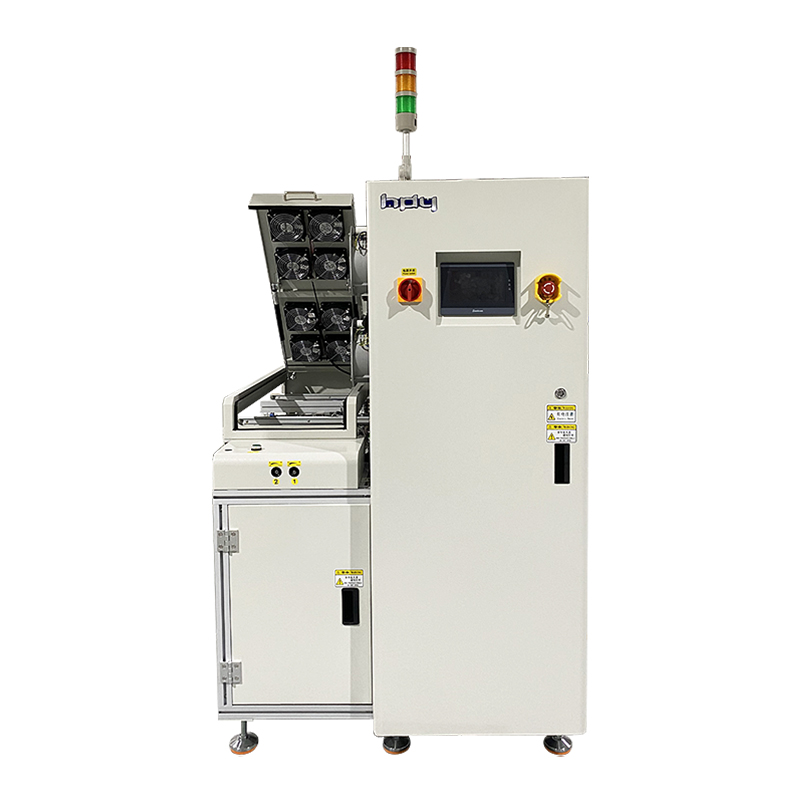

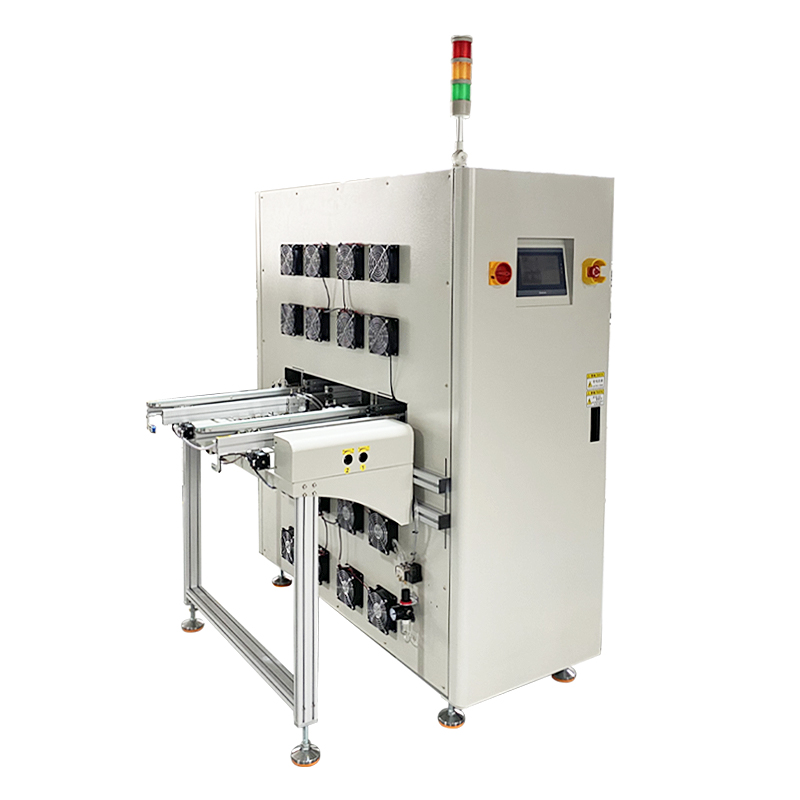

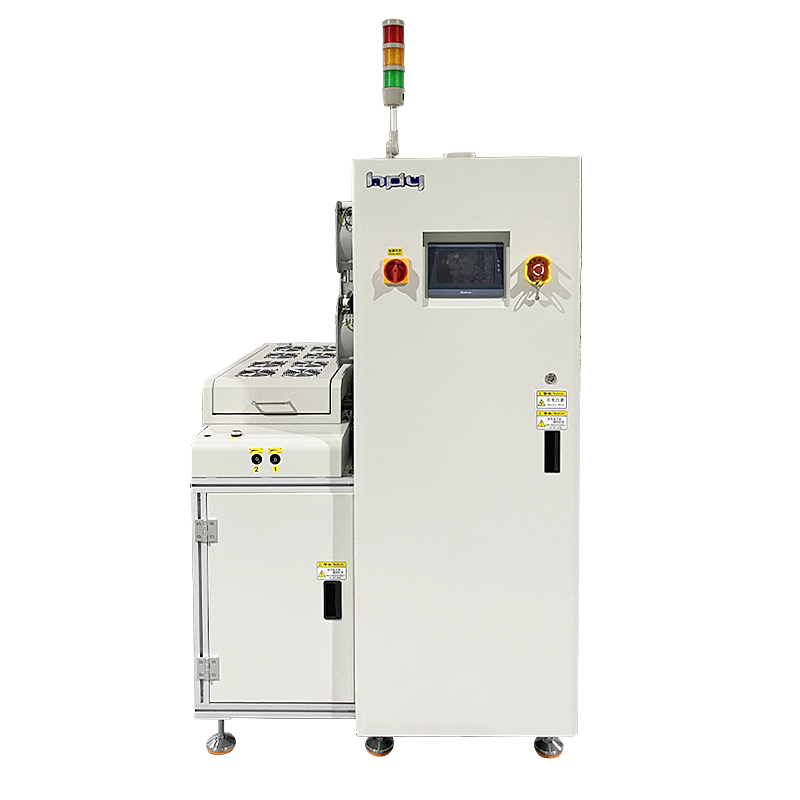

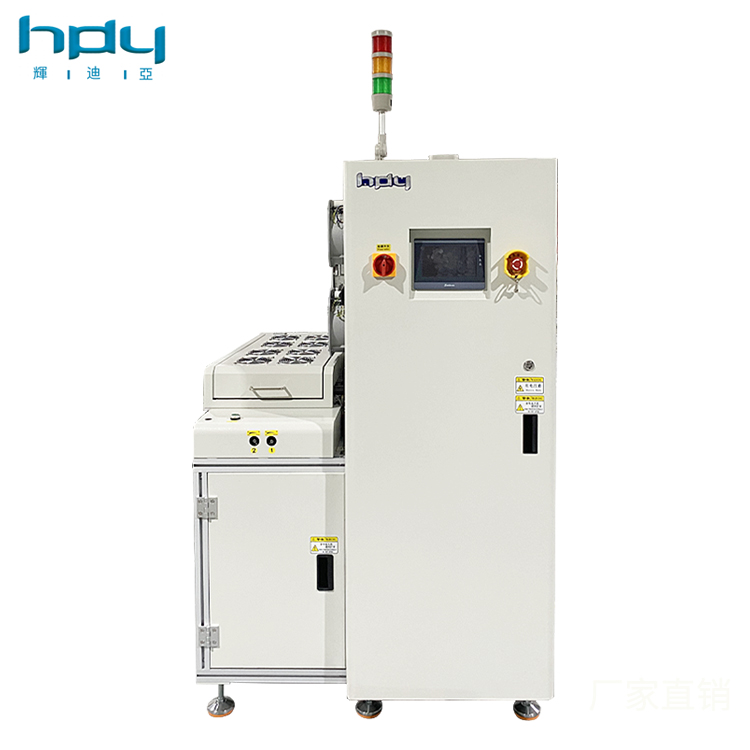

The SMT Dual-Rail Cooling and Buffering Machine HDY-SLH260 is a high-efficiency cooling and buffering solution designed for SMT production lines. Its dual-rail design ensures superior cooling performance and flexible buffering capacity, rapidly cooling electronic components after soldering to significantly enhance product quality and production continuity.
Technical Parameters:
| Dual-Rail Cooling & Buffering Machine HDY-SLH260 |
| Overall Dimensions: L1000 × W1500 × H1650mm |
| Dedicated Sheet Metal Frame |
| Built-in Multi-Layer Conveyor System with Aluminum Alloy Turnover Box |
| Servo Motor-Driven Magazine Step Lifting |
| Stepper Motor Transmission |
| Precision Ball Screw Mechanism |
| Maximum PCB Size: (L)480mm × (W)50–260mm |
| Conveying Direction: Left to Right |
| PCB Conveying Height: 920±30mm |
| Multi-Layer Conveyor Pitch Options: 25mm / 50mm |
| Multi-Layer 4mm Flat Belt Transmission |
| Maximum PCB Storage Capacity: 20 Boards |
| Panasonic PLC Programmable Controller with Automatic Alarm Function |
| Buffer Storage with First-In-First-Out (FIFO) Function |
| Touchscreen Control Panel |
| Power Supply: 220V 50Hz |
| Complete Electrical Cabinet Set |
| Mean Well Power Supply, Omron Relay |
| Equipped with Cooling Fans |
Product Introduction
The SMT Dual-Rail Cooling and Buffering Machine HDY-SLH260 is a high-efficiency cooling and buffering solution designed for SMT production lines. Its dual-rail design ensures superior cooling performance and flexible buffering capacity, rapidly cooling electronic components after soldering to significantly enhance product quality and production continuity.
Advantages Compared with Competitors
Efficient Cooling & Smart Buffering
Multi-layer conveyor system with a maximum storage capacity of 20 boards
Advanced cooling technology quickly reduces components to optimal temperature, minimizing soldering defects
Dual-rail design supports buffer storage and first-in-first-out function, adaptable to varying production rhythms
Precise Control & Stable Operation
Panasonic PLC programmable controller ensures accurate and reliable operation
Servo motor-driven Magazine stepping lift ensures smooth and efficient transmission
Equipped with automatic alarm and intelligent fault diagnosis for easy maintenance
Robust Structure & Wide Compatibility
Dedicated sheet metal frame and aluminum alloy turnover box for enhanced durability
Supports PCB sizes up to 480mm × (50-260)mm
Adjustable conveyor height (920±30mm) for diverse production environments
Product Applications
This equipment is widely used in electronic manufacturing, including:
SMT production lines for consumer electronics, automotive electronics, and communication devices
Suitable for small-batch customized production and large-scale mass production
Provides efficient cooling and buffering post-soldering to improve overall production efficiency
Company Profile
Huidiya Electronics Technology Co., Ltd.
A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China
As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.
Core Competencies
Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.
End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.
Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.
Product Portfolio
Our extensive range of standardized and customized EMA equipment includes:
SMT Handling Systems:
SMT Loader/Unloader
Transfer Station
PCB Buffer Machine
PCB Processing Equipment:
Flip Machine
PCB Cleaner
Corner Router
Vacuum Feeder
Quality Control Systems:
NG/OK Screening Machine
Automated Inspection Station
Specialized Machinery:
Stacker/Conveyor System
Customized Transfer Solutions
Customization Services
We specialize in tailored EMA solutions to meet unique production requirements, including:
Modular Design: Configurable workstations for diverse PCB sizes and component densities.
Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.
Rapid Prototyping: Accelerated development cycles for new product launches.
Why Partner With Huidiya?
Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.
Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.
After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.
Contact Us Today
Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:
Email: [email protected]
Tel: +86-13143286318
FAQ
Q: What are the PCB size requirements?
A: Maximum supported PCB size is 480mm (L) × 50-260mm (W).
Q: What are the power supply requirements?
A: Standard power supply: 220V 50HZ.
Q: Is daily maintenance complicated?
A: The built-in intelligent diagnostic system enables quick fault identification. We also provide comprehensive after-sales support.
Q: Can it adapt to different production environments?
A: Yes, it tolerates varying temperature/humidity conditions and can be customized for specific environmental needs.
