[Introduction]
In SMT (Surface Mount Technology) production lines, efficiently inspecting PCBs after reflow soldering, intercepting defective boards, and seamlessly transferring good boards are critical factors affecting overall factory throughput. Recently, Dongguan Huidiya Electronic Technology Co., Ltd. (located in Chashan, Dongguan) launched the new HDY-1SSX NG/OK Dual-Lane Sorting Machine (10-board buffer capacity) , designed for small-to-medium batch, multi-variety production environments. This machine not only enables efficient manual/automatic inspection on both sides but also breaks the single-purpose limitation of traditional sorters with its flexible "pass-through mode," making it a highly adaptable connection hub on the production line.
[Core Highlights: More Than Sorting – A Flexible Transfer Hub]
Traditional sorters often become "white elephants" when production changes occur or when sorting is not needed, wasting valuable floor space. The HDY-1SSX is designed around the concept of "function integration, flexible switching" :
Dual-Lane Operation, Doubled Throughput: The machine features dual lanes supporting simultaneous PCB passage on both sides (maximum board width 280mm per lane), effectively doubling processing capacity per unit time. This helps alleviate bottlenecks in upstream processes requiring complex visual inspection or ICT testing.
10-Board Intelligent Buffer, No More Downtime Waiting: The system is programmed to automatically store up to 10 NG (defective) PCBs. This means operators do not need to stop expensive upstream pick-and-place machines when detecting consecutive defects or needing to batch-process faulty boards, enabling continuous flow production and maximizing OEE (Overall Equipment Effectiveness).
Two Machines in One: Sort Mode & Pass-Through Mode Freely Switchable: This is a major innovation. When sorting is not required (e.g., during normal full-speed production), operators can easily switch the "buffer/sort function to pass-through mode" via the control system. The machine then functions as a standard conveyor, allowing OK boards to pass through at full speed without any unnecessary dwell time.
Dual-Side Operation Station: Human-centric design allows operation and observation from both sides, greatly facilitating line layout and multi-station collaboration.
[Robust Configuration: Precision Control & Premium Electrical Components]
As a national high-tech enterprise specializing in SMT peripheral automation equipment, Huidiya adheres to high standards in the core configuration of this model:
Smart Connectivity, Industry 4.0 Ready: The control system uses a mature Huichuan PLC paired with a ViewSonic touchscreen for a user-friendly interface. Importantly, the machine is equipped with an MES (Manufacturing Execution System) interface, enabling real-time production data upload and traceability to support smart factory upgrades.
Stepper Motor Automatic Width Adjustment: Rail width is automatically adjusted via stepper motor drive, offering strong adaptability and saving time and effort during product changeovers.
Precision Sensing & Transport: Equipped with eight sensors across the dual lanes for accurate positioning and error-proofing. The conveyor uses 4mm flat belts with variable speed control (0.5–9 m/min) for smooth, quiet, and stable board transport.
Selected International Brand Electrical Components: Key electrical parts are sourced from industry-recognized top brands – Mean Well power supply and Omron relays – ensuring long-term continuous and stable operation.
[Technical Specifications]
| Item | Specification |
| Model | HDY-1SSX NG/OK Dual-Lane Sorting Machine |
| Overall Dimensions | L1000mm × W1000mm × H1175mm |
| Rail Length | 1000mm |
| Width Adjustment | Max 280mm per lane (dual-lane simultaneous passage); stepper motor auto-adjustment |
| Transport Height | 900 ± 20 mm |
| Conveyor Belt | 4mm flat belt |
| Transport Speed | 0.5 – 9 m/min (adjustable) |
| Drive System | One motor (variable frequency control) |
| Sensor Configuration | Eight sensors across dual lanes |
| Control System | Huichuan PLC + ViewSonic touchscreen |
| Data Interface | MES connectable |
| Transport Direction | Left to Right |
| Core Functions | Auto-buffer 10 NG PCBs; OK PCBs pass through; buffer/sort mode and pass-through mode switchable |
| Electrical Configuration | Mean Well power supply, Omron relays, one electrical control cabinet |
[Conclusion & Contact]
The launch of the HDY-1SSX further enriches Huidiya's product matrix for SMT front-end and back-end peripheral equipment. Whether for trial production lines requiring strict sorting or prototyping workshops demanding high flexibility, this machine is a perfect fit.

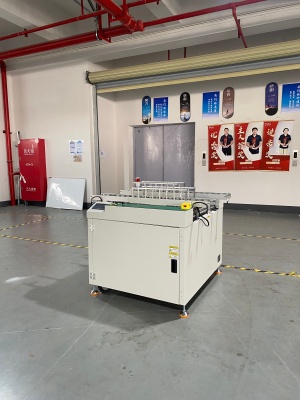

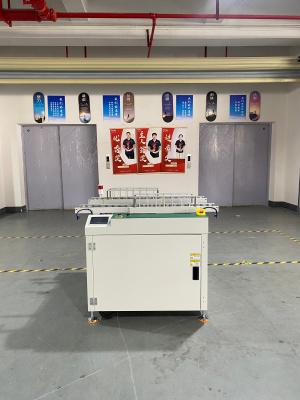

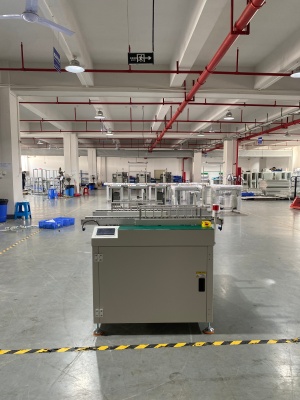

The equipment has been assembled and commissioned at Huidiya's Chashan factory in Dongguan. We can provide high-resolution factory photos and dynamic commissioning videos for your reference.
Business & Technical Inquiry:
You are welcome to visit Dongguan Huidiya Electronic Technology Co., Ltd. (Chashan, Dongguan) for on-site inspection and sample testing.
Contact: Manager Lei 13143286318
