Equipment model: HDY-0.5DSX Sorting Machine (0.5m standard version, optional dust cover)
Category: Equipment Update / Technical News
After reflow soldering or pick-and-place, SMT lines often require an in-line screening step to automatically separate good PCBs from defective ones while buffering against cycle time fluctuations between upstream and downstream processes. Recently, Dongguan Huidiya Electronic Technology Co., Ltd. completed in-house debugging and pre-shipment validation of its HDY-0.5DSX Sorting Machine (0.5m standard version) at the Chashan factory. The machine comes standard with cache function and NG/OK screening, with an optional dust cover. Real photos and a debugging video have been archived for customer reference.
What This Machine Solves
Designed for post-SMT or pre-inspection transition zones, the HDY-0.5DSX delivers three functions in one machine:
1.Screening mode: Automatically identifies and stores NG PCBs (up to 10 pcs) while letting OK PCBs pass through – no manual sorting needed.
2.Cache mode: Temporarily buffers PCBs when upstream/downstream cycle times are mismatched, preventing line jams or idle time.
3.Pass-through mode: Disables screening and operates as a standard conveyor, maximizing equipment utilization.
With the optional dust cover, it suits PCBs that require higher cleanliness (e.g., ENIG boards, high-frequency boards), reducing airborne particle contamination.
Hardware Highlights (HDY-0.5DSX 0.5m Version)
Conveyor system: 4mm flat belt drive for smooth, scratch-free transport.
Width adjustment: Stepping motor auto-adjustment, covering 50–350mm without manual intervention.
Control system: Huichuan PLC + ViewSonic true-color touchscreen with graphical parameter setting; supports MES connectivity for real-time data exchange.
Electrical components: Mean Well power supply + Omron relays for stable performance.
Dust cover: Optional transparent cover allows visual monitoring while blocking environmental particles.
Cache & screening logic: Sensors and PLC program coordinate to store NG boards in a buffer zone (max 10 pcs) with alarm when full; OK boards pass continuously without affecting cycle time.
Key Specifications
| Parameter | Specification |
| Model | HDY-0.5DSX (0.5m standard) |
| Overall dimensions | L500 × W776 × H1175 mm (without dust cover) |
| Rail length | 500 mm (customizable up to 1000 mm) |
| PCB width range | 50 – 350 mm |
| Transport height | 900 ± 20 mm |
| Conveyor belt | 4mm flat belt |
| Transport speed | 0.5 – 9 m/min (adjustable) |
| Control | Huihuan PLC + ViewSonic touchscreen |
| Width adjustment | Stepping motor auto-adjustment |
| MES interface | Supported |
| Transport direction | Left → Right |
| NG buffer capacity | Up to 10 pcs |
| Power supply | 220V 50Hz |
| Dust cover | Optional (transparent material) |
Ideal Production Lines
Lines that need to automatically reject defective boards after soldering before entering the next process.
Situations where upstream/downstream cycle times are uneven and require buffer storage to avoid downtime.
Applications demanding higher cleanliness for PCB surfaces, benefiting from the dust cover.
Compact production floors looking for multi-function equipment (screening/cache/pass-through) to save space.

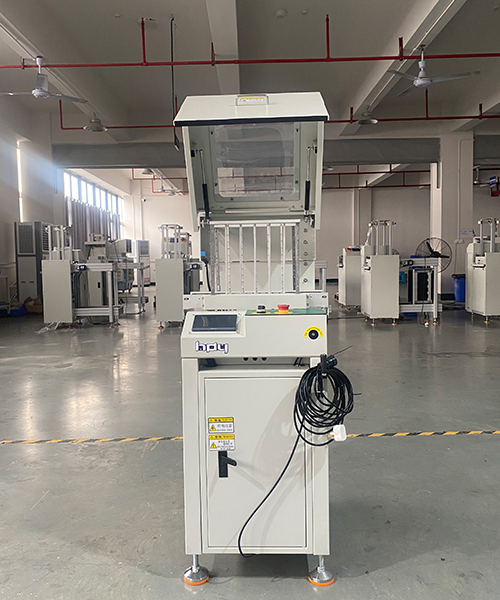

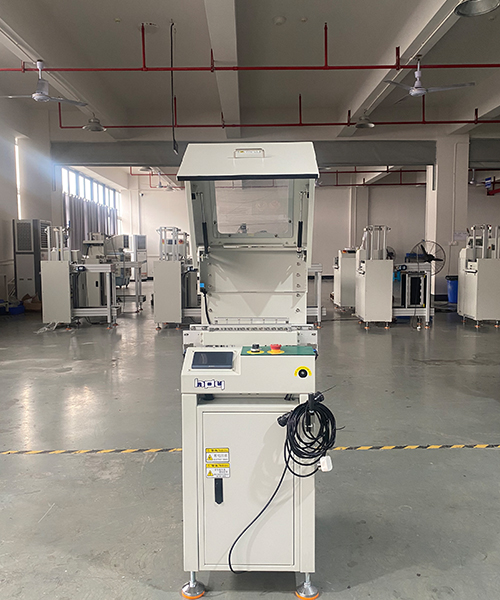

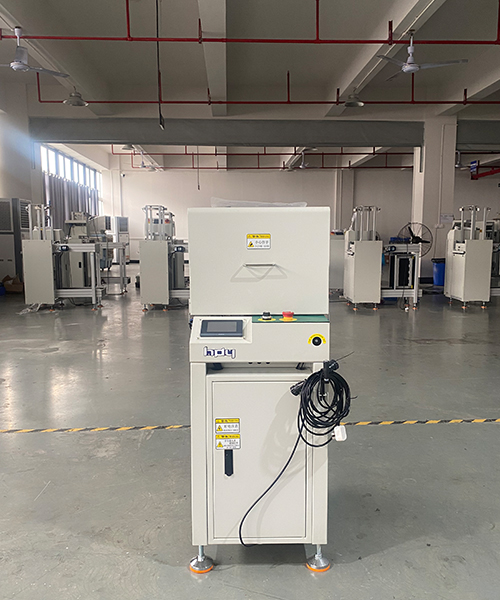

Photos & Debugging Video
