The automotive electronics manufacturing landscape is undergoing a massive paradigm shift. Driven by the rapid global rise of Electric Vehicles (EVs), Advanced Driver Assistance Systems (ADAS), and complex In-Vehicle Infotainment (IVI), the requirements for Printed Circuit Board Assembly (PCBA) have moved from standard commercial grades to zero-defect automotive standards.

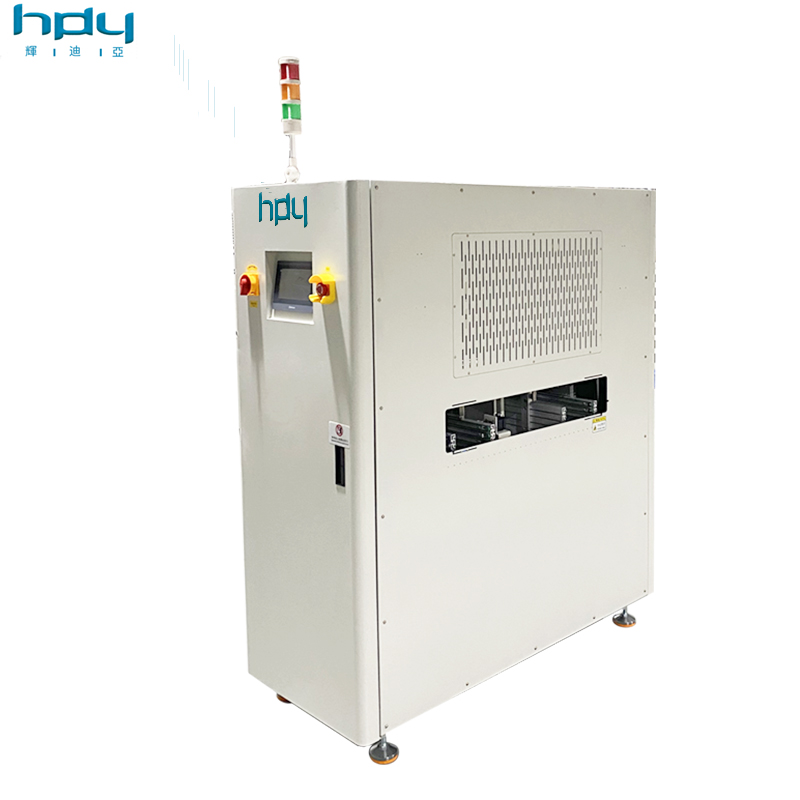

To address these uncompromising quality and volume benchmarks, advanced Surface Mount Technology (SMT) handling specialists have officially introduced the Automotive Dual-Track NG/OK Buffer Machine. Engineered specifically to eliminate production bottlenecks behind automated optical or x-ray inspection stations (AOI/AXI), this next-generation line-handling solution optimizes throughput while enforcing total defect isolation.
The Automotive SMT Dilemma: Balancing Throughput with Zero Defects
In a high-volume automotive SMT production line, the pace is relentless. High-speed chip shooters place tens of thousands of components per hour across dual-lane conveyor networks. However, the true bottleneck typically occurs immediately after the inspection phase. When an inline AOI or SPI (Solder Paste Inspection) system flags a circuit board as "NG" (No Good), standard production lines are forced into a difficult compromise: either pause the entire line for manual intervention, or risk mixing failed boards with certified "OK" (Good) products.
“In automotive electronics, an unbuffered line stoppage can cascade upstream, causing thermal imbalances in the reflow oven and disrupting the tactical rhythm of the entire facility,” explains an automation systems engineer. “The Automotive Dual-Track NG/OK Buffer acts as a dynamic shock absorber. It absorbs rhythm differences between high-speed placement and meticulous inspection, separating failed boards instantly without adding a single millisecond of idle time to the primary line.”
Technical Deep-Dive: Architecture of the Dual-Track NG/OK Buffer
This automotive-grade buffering machine is built upon a rugged steel frame and super aluminum alloy guide rails, ensuring vibration-free operation even when cycling heavy, densely populated multi-layer PCBs. The technical superiority of the dual-track design lies in its multi-mode, independent lane architecture:
1. Dual-Lane High-Speed Pass-Through
The system incorporates two completely independent transport tracks that interface flawlessly with dual-lane reflow ovens and dual-gantry pick-and-place machines. The tracks utilize high-precision, anti-static (ESD) flat belt or roller transport mechanisms. This allows "OK" boards on Lane A to seamlessly advance to downstream processes, even while Lane B is engaged in a complex buffering cycle.
2. Servo-Motor Driven Vertical Indexing
Equipped with high-torque Mitsubishi or Panasonic servo motors paired with precision ball screws, the internal multi-tier magazine achieves an indexing accuracy of $pm0.1text{ mm}$. When an inspection system handshakes an "NG" signal via SMEMA or IPC-CFX protocols, the machine's elevator vertically indexes in a fraction of a second to load the defective board into a designated isolation slot.
