In double-side process scenarios such as SMT double-sided placement and conformal coating line double-sided spraying, precise PCB flipping and stable transport are critical to production efficiency and quality. Dongguan HuiDiA Electronic Technology Co., Ltd. (hereinafter referred to as "HuiDiA Electronics") has launched the HDY Chain-Type Automatic Board Flipper (Width-Adjustable 460 Model) . With its targeted structural design and reliable transmission system, this equipment serves as an "efficient collaborator" for double-side process production lines. This article will analyze its technical features and application value based on actual photos and equipment parameters.
I. Precise Positioning: Designed for Double-Side Processes
The core mission of the HDY Chain-Type Automatic Board Flipper (Width-Adjustable 460 Model) is to address the PCB flipping requirements in scenarios such as SMT double-sided placement (e.g., component soldering on both sides) and conformal coating line double-sided spraying (e.g., dual-side application of conformal coating or insulating varnish). Its design revolves around precise flipping, stable transport, and multi-size compatibility:
Compatible PCB Specifications: Supports up to L500mm × W460mm × 5mm, with a total load capacity of 5KG, covering most small-to-medium PCBA double-side process needs;
Adjustable Rails: Rail width adjustable from 50 to 460mm, accommodating different PCB widths for flexible multi-variety production;
Integrated Flipping and Transport: Automatically completes the "front side → flip → back side" transport of PCBs, seamlessly connecting upstream and downstream equipment (such as pick-and-place machines and coating machines).
II. Core Technical Parameters (Based on Equipment Documentation)
| Item | Parameter Details |
| Dimensions | 1600mm (L) × 920mm (W) × 1400mm (H) |
| Rail Inner Height | 910±20mm |
| Rail Width | 586mm (base), adjustable from 50 to 460mm (for multi-size PCBs) |
| PCB Specifications | Max L500mm × W460mm × 5mm, total load 5KG |
| Transport Speed | 0~4m/min (adjustable to match production line cycle time) |
| Drive Method | Stepper motor drives 25B chain with 5mm pins for transport; synchronous stepper motor drives flipping motion (smooth flipping) |
| Control System | Panasonic PLC + 7-inch touch screen (user-friendly interface for parameter setting and status monitoring) |
| Safety Protection | Enclosed lower body + side panels + painted finish; equipped with warning light tower, emergency stop button, and blocking cylinder (Fig. 4) |
| Pneumatics / Electrical | Air supply pressure 0.2~0.6Mpa; Mean Well power supply, Omron relays (stable electrical system) |
| Transport Direction | Optional: "right to left" or "left to right" |
III. Structural Highlights: 25B Chain + Precision Control Ensures Reliability for Double-Side Processes

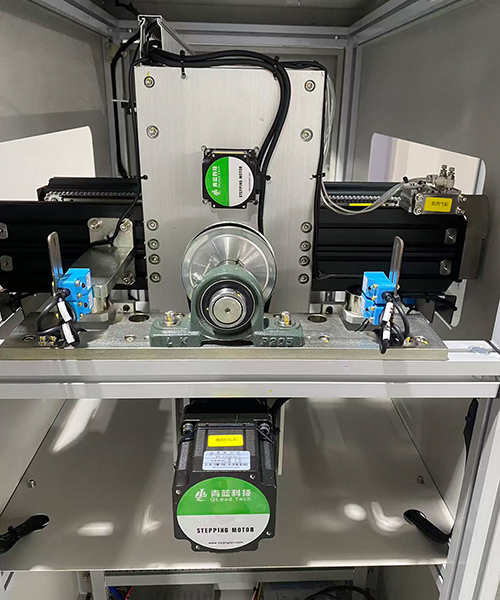

From the actual photos (especially the internal detail images), it is evident that the core transmission and control systems have been carefully designed to address the specific challenges of double-side processes:
1. 25B Chain with 5mm Pins: The "Stable Foundation" of Transmission
The equipment uses a 25B chain with 5mm pins (as marked in Fig. 4). This selection is specifically tailored to the high precision requirements of double-side processes:
Strength and Durability: The 25B chain is a standard industrial-grade chain with moderate pitch and high tensile strength, capable of stably carrying a 5KG load and adapting to high-frequency double-side flipping/transport operations;
Precision Positioning: The "pinned" design (chain links with locating pins), combined with the guide rails, ensures precise positioning of PCBs before and after flipping, preventing misalignment or jamming, thereby guaranteeing alignment accuracy for double-sided placement/spraying;
Smooth Transmission: Metal chains maintain a stable transmission ratio under load. Paired with stepper motors, they ensure no vibration during the entire flipping and transport process at speeds of 0~4m/min, preventing damage to PCBs.
2. Blocking Cylinder: The "Precision Valve" for Safety
The "blocking cylinder" shown clearly in Fig. 4 functions to precisely intercept PCBs at the flipping station / transfer station, ensuring:
Accurate PCB positioning before the flipping action;
Smooth handover of PCBs to the next process after flipping;
Prevention of board slippage or misalignment, structurally guaranteeing safety for double-side processes.
3. Enclosed Protection and Smart Interaction

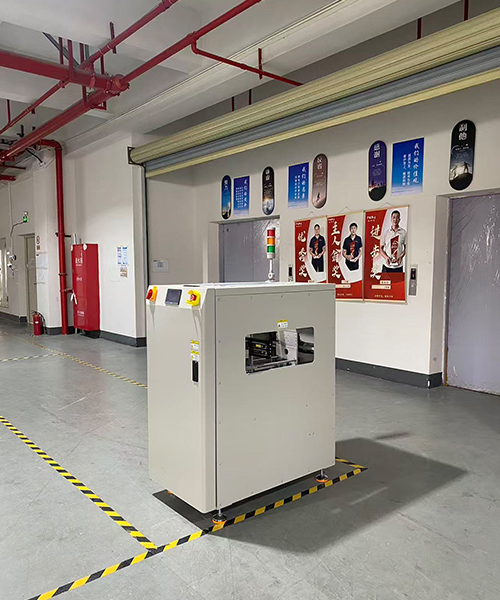

The external design features an enclosed lower body + side panels + painted finish, which not only enhances industrial aesthetics but also prevents dust contamination (especially important for coating line cleanliness requirements), extending the lifespan of internal electrical components;

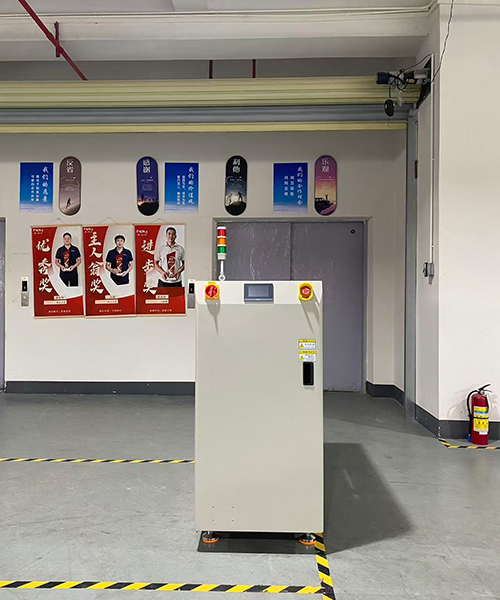

The top-mounted warning light tower + emergency stop button and side-mounted 7-inch touch screen + control panel make parameter setting and status monitoring intuitive and convenient, reducing employee training costs.
IV. Application Value: The "Efficient Collaborator" for Double-Side Processes
In SMT double-sided placement and conformal coating line double-sided spraying scenarios, the HDY Chain-Type Automatic Board Flipper (Width-Adjustable 460 Model) delivers value through:
Efficiency Improvement: Automates the "front side → flip → back side" transport, reducing manual intervention and matching production line cycle times (0~4m/min adjustable);
Quality Assurance: The 25B chain + stepper motor + blocking cylinder combination ensures damage-free flipping and offset-free transport of PCBs, safeguarding alignment accuracy for double-sided placement/spraying;
Flexible Adaptability: Rail width adjustable from 50 to 460mm accommodates various PCB sizes, ideal for "multi-variety, small-batch" production;
Low Maintenance: Standardized chain (25B) + modular design facilitates easy maintenance and replacement, reducing long-term operating costs.
V. Conclusion: Quality Lies in Details, Technology Builds Excellence
The HDY Chain-Type Automatic Board Flipper (Width-Adjustable 460 Model) is a customized solution from HuiDiA Electronics specifically designed for double-side process scenarios. From the selection of the 25B chain to the precision control of the blocking cylinder, from the enclosed protective structure to the optimized smart human-machine interface, every detail reflects the design philosophy of "stability, efficiency, and reliability."
Moving forward, HuiDiA Electronics will continue to deepen its expertise in SMT peripheral automation equipment, providing superior products and services to help electronics manufacturers achieve intelligent manufacturing upgrades in their double-side processes.
[About HuiDiA Electronics]
Dongguan HuiDiA Electronic Technology Co., Ltd. specializes in the R&D, production, and sales of SMT automation equipment. Our product line includes loaders, unloaders, conveyors, board flippers, and more. We are committed to providing customers with one-stop intelligent manufacturing solutions. Welcome inquiries and visits!
