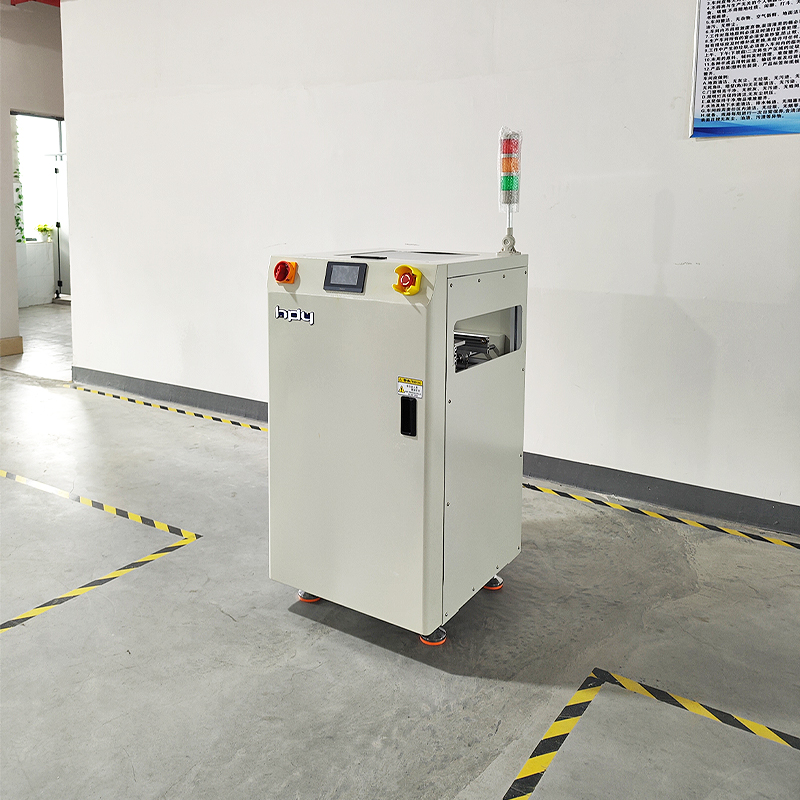

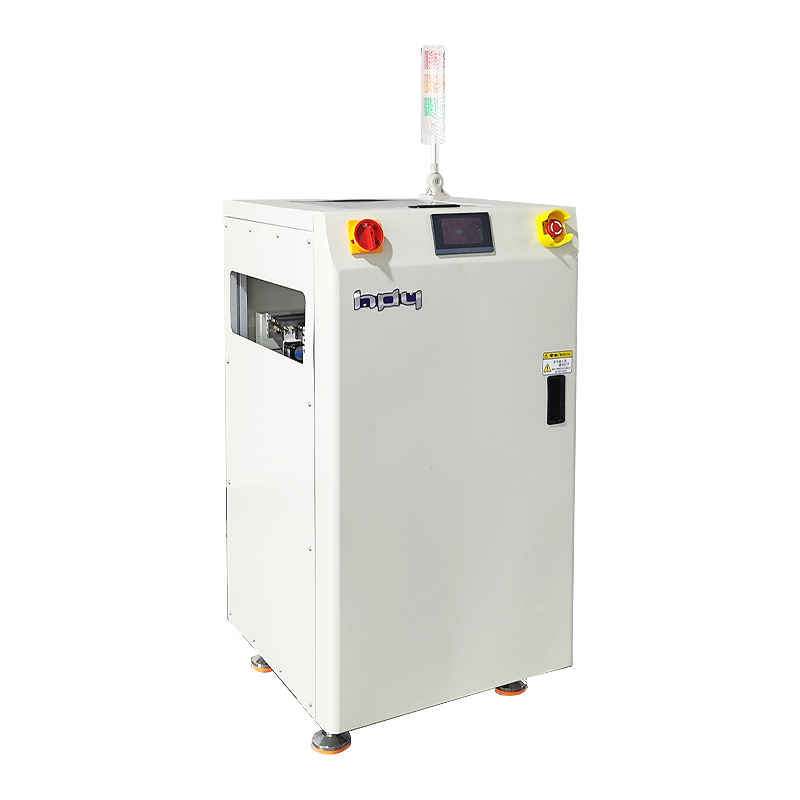

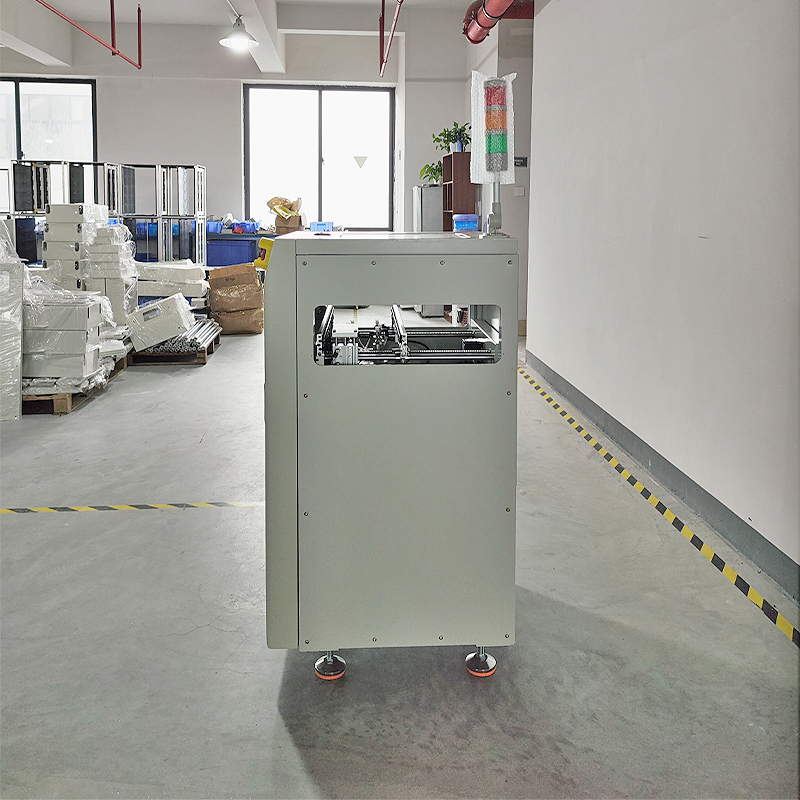

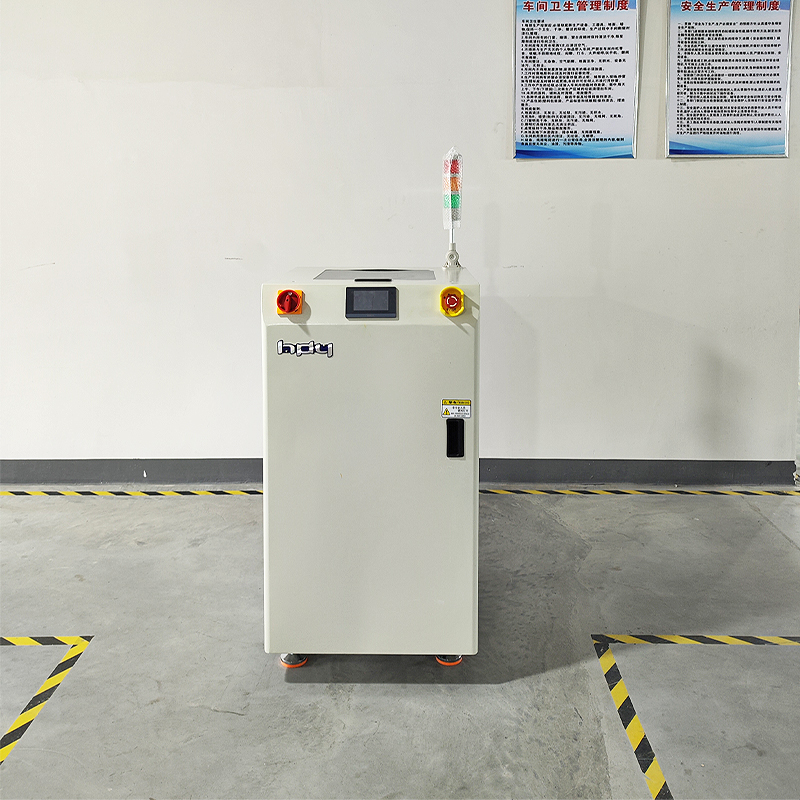

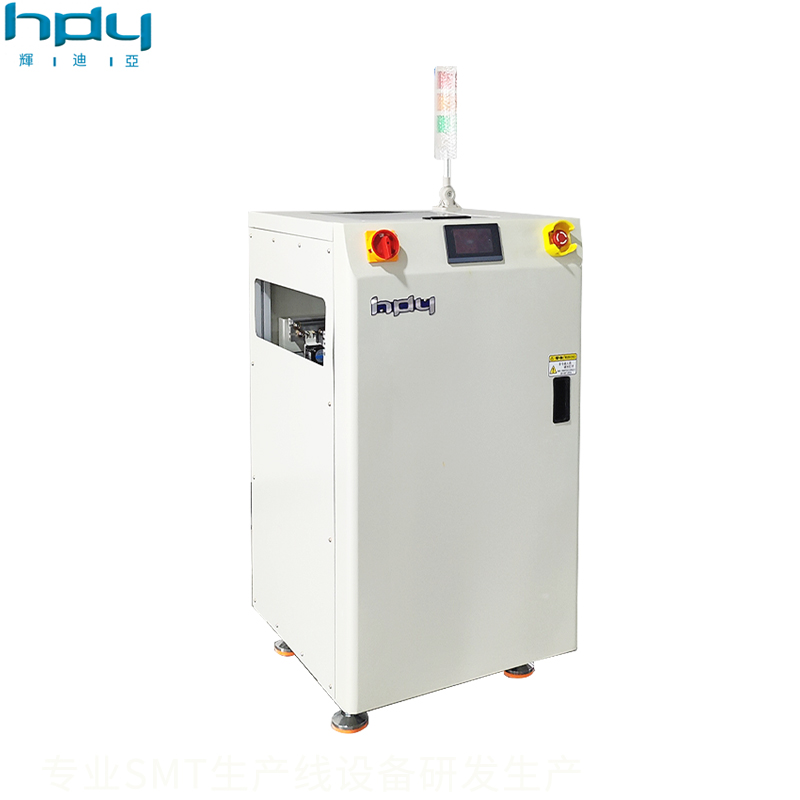

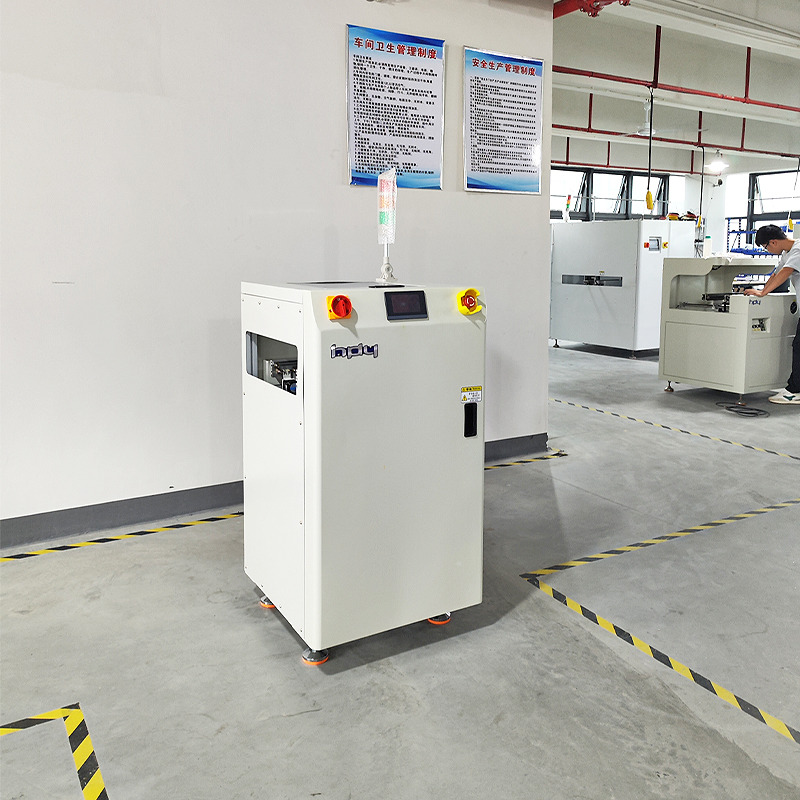

The edge changing machine is applied in special scenarios of SMT production lines, used to convert PCBs into 90 ° directions. It can convert products from wide in to narrow out, or from narrow in to wide out.
Product Introduction
The edge changing machine is applied in special scenarios of SMT production lines, used to convert PCBs into 90 ° directions. It can convert products from wide in to narrow out, or from narrow in to wide out.
Features
1.PLC program control system
2.Quickly switch product direction
3.Can be switched to rotate left or right,and can also be set to not rotate (direct mode)
4.Cylinder supports PCB, air nozzle vacuum suctionstable and reliable rotation
Technical Parameters
| Dimensions | 600 * 640 * 1200mm |
| Working voltage | 220V 50HZ |
| Track height | (MM) 900 ± 20 |
| Size range | (MM) L550 * W400 |
| Fixture thickness | (MM) 6 |
| Transmission direction | left to right |
| PCB Conveyor Leather Borrowing Specification | Fan Flat Belt |
| Steering Power | Pneumatic Buffer Rotation |
| transmission cycle | less than 30 seconds |
| Working mode | Should be turned to 90 °/straight through mode |
| Width Adjustment Method | Electric |
| Control system | Touch screen+PLC |
| Communication method | Standard SMEMA communication |
| PLC brand | Huichuan |
| Sensors | Omron |
| Limit Sensor | Omron |
| Wave Pearl Screw Rod | TBI |
| step stepper motor, driver | Renesas |
| cylinder, solenoid valve | Yadeke |
| touch screen | display and control |
| AC Motor | Zhongda |
| Switching power supply | Mingwei |
| front door | upper and lower doors open |
