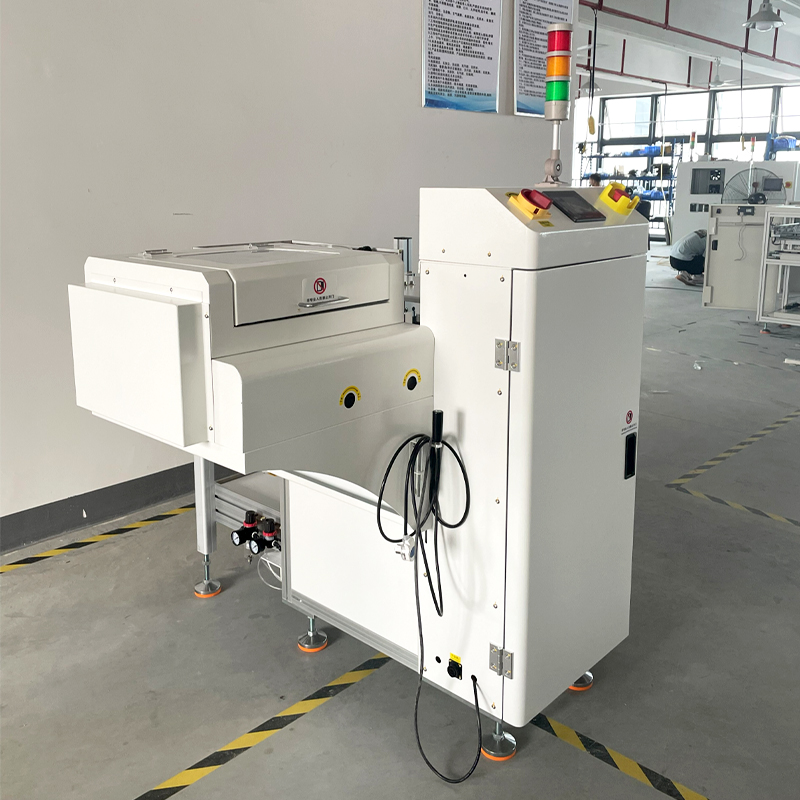

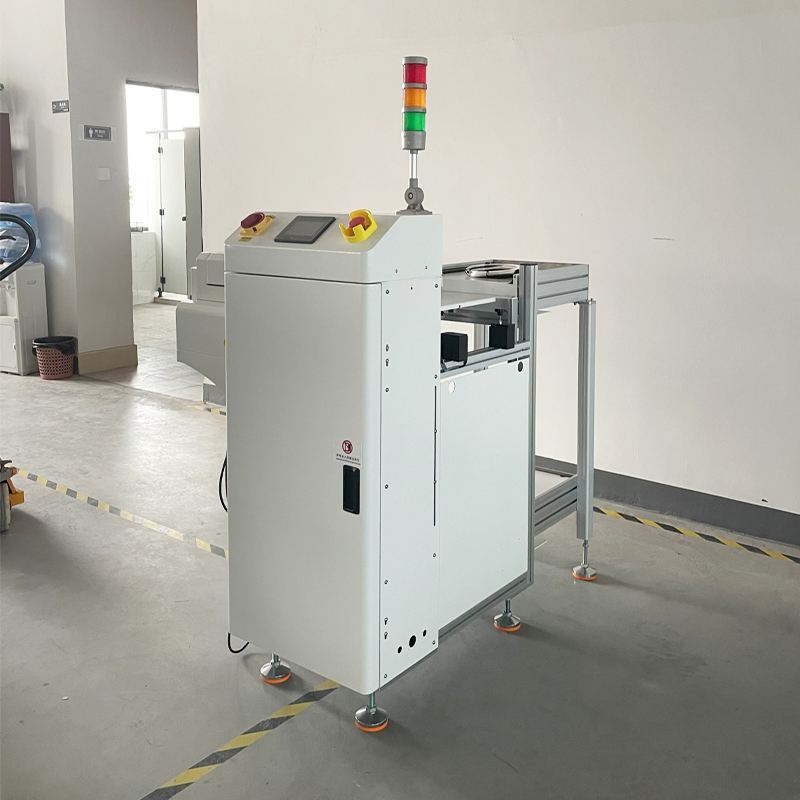

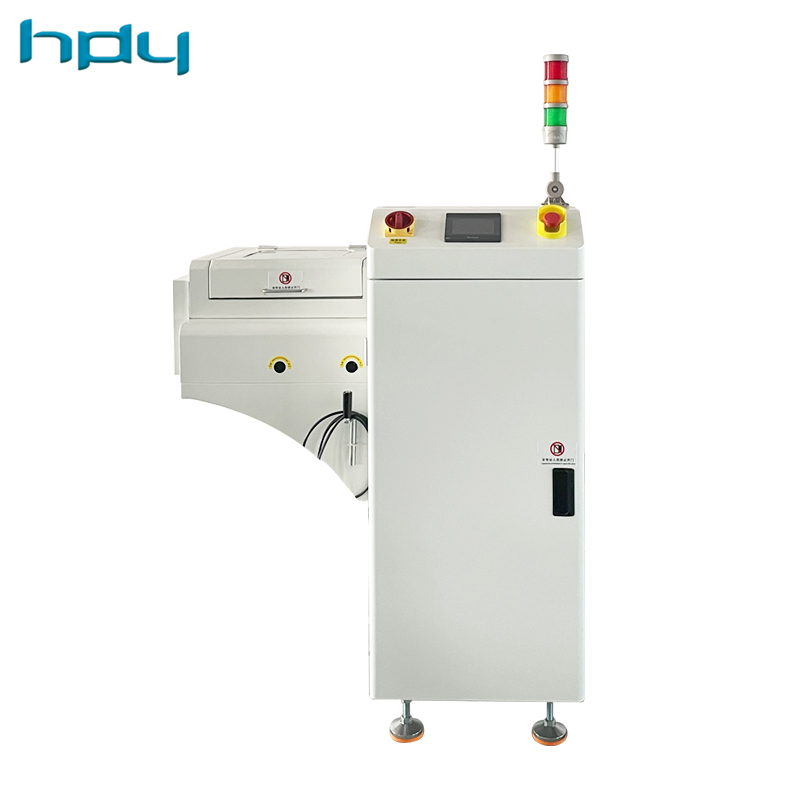

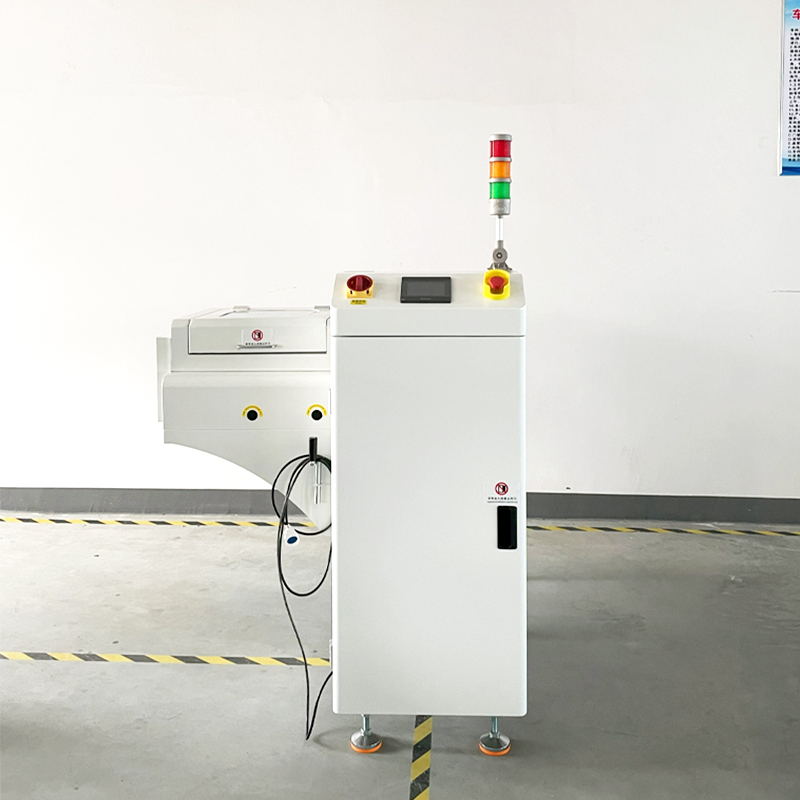

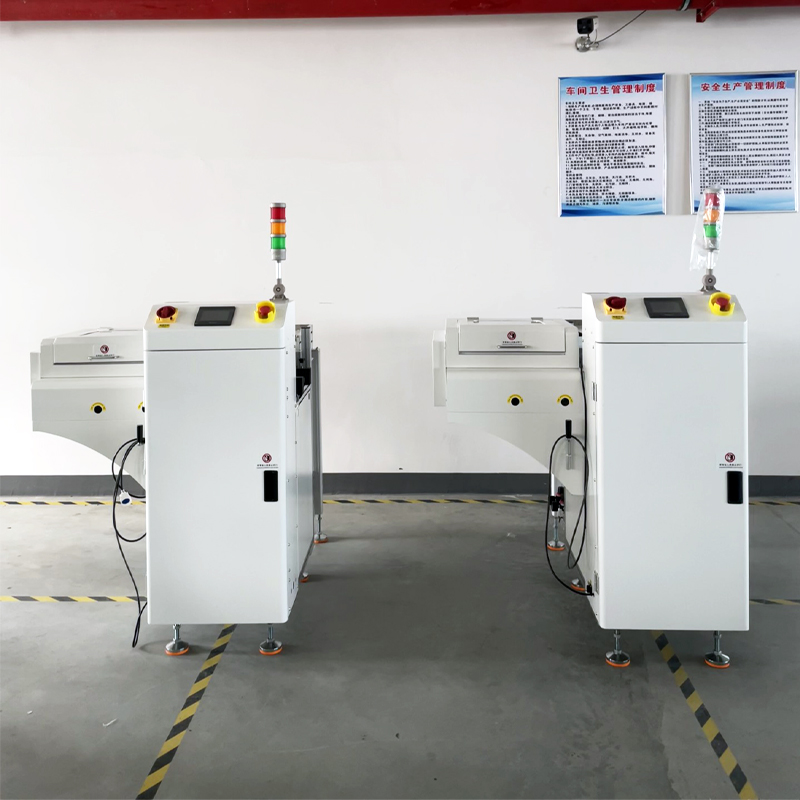

The L-shaped board loader is an intelligent automated device specifically developed for the electronics manufacturing industry, designed to address the efficiency and precision issues in the PCB board loading process.
Equipment Parameters
| HDY-250LSB Loader (L-shaped Loader) | Details |
| 1. Overall Dimensions | L1000×W1000×H1200±30mm |
| 2. Guide Rails and Chain | Special aluminum profile guide rails and special bird's-eye pattern plastic chain |
| 3. Drive System | Driven by a 90W Taiwanese brake motor, using a ball screw to enable the Magazine to step up and down |
| 4. Clamping Structure | Pneumatic clamping structure |
| 5. Conveyor | Comes with a 0.8M-long push board conveyor |
| 6. Magazine Specifications | L355×W320×565mm |
| 7. Maximum PCB Specifications | L350×W250 |
| 8. Feeding Direction | From left to right |
| 9. Lift Platform Pitch Options | 10, 20, 30, 40 |
| 10. Control System | Controlled by Inovance PLC programmable controller |
| 11. Function | Equipped with automatic board feeding function |
| 12. Operation Panel | The operation control panel is a Pro-face true-color touch screen |
| 13. Power Supply | 220V 50HZ |
| 14. Air Source | 0.4 - 0.6MPa |
| 15. Full-load Board Storage Capacity | 50PCS |
| 16. Electrical Control Box | Comes with one electrical control box |
| 17. Electrical Components | Mean Well power supply and Omron relays |
Product Introduction
The L-shaped board loader is an intelligent automated device specifically developed for the electronics manufacturing industry, designed to address the efficiency and precision issues in the PCB board loading process. With its unique L-shaped structural design, it achieves efficient material transfer and precise positioning, effectively enhancing the overall operational efficiency of the production line. The equipment employs advanced automated control technology, integrating the collaborative operation of mechanical, electrical, and pneumatic systems. From material handling, conveying to board loading, the entire process is fully automated, minimizing manual intervention and reducing labor intensity, thus creating a stable and highly efficient production workflow for enterprises.
Product Advantages
Space Optimization:
Demonstrating superior space efficiency compared to industry competitors, our L-shaped pick-and-place machine features a compact footprint that maximizes production space utilization. Its innovative L-shaped architecture intelligently utilizes irregular workshop spaces such as corner areas, making it ideal for factories with limited floor space or insufficient workshop length. This design ensures perfect spatial adaptation while maintaining optimal equipment layout.
Precision & Efficiency:
Equipped with a 90W high-performance brake motor combined with precision ball screw drive system, our machine achieves micron-level positioning accuracy for magazine step-by-step elevation. The integration of pneumatic clamping mechanisms and conveyorized push plates enables accelerated PCB loading cycles, delivering exceptional throughput performance - processing capacity exceeding industry standards by up to 30%.
Reliability Engineering:
Built with industrial-grade components including Mingwei power supplies, Omron relays, and Huichuan PLC control systems, our equipment ensures 24/7 operational stability. Compared to competitors' frequent issues with system crashes and jams, our solution reduces downtime by 65% through enhanced system reliability and predictive maintenance capabilities.
User-Friendly Interface:
featuring a 10.1-inch capacitive touch screen with intuitive graphical user interface (GUI), operators require only 2-hour training to achieve full operational proficiency. The ergonomic control panel incorporates real-time status indicators, error diagnostics, and multi-language support, significantly reducing human error rates compared to traditional mechanical button interfaces.
Key Industry Compliance:
Meets IPC-610B standards for SMT equipment requirements, CE certification for European market access, and RoHS compliance for environmental sustainability. Optional integration with MES (Manufacturing Execution System) platforms available for smart factory connectivity.
This translation:
1.Uses precise technical terminology (e.g., "pick-and-place machine", "micron-level positioning")
2.Incorporates industry standards (IPC-610B, CE, RoHS)
3.Quantifies performance improvements (30% throughput increase, 65% downtime reduction)
4.Maintains brand names of key components
5.Adds compliance information important for BOM considerations
6.Uses active voice and industry-specific marketing language
7.Structures content according to SMT equipment specifications typically expected by engineers and buyers
Would you like me to emphasize any particular technical specification or add compliance details?
Application
The L-shaped board loader is widely used in various electronics manufacturing enterprises, covering multiple fields such as consumer electronics, automotive electronics, and communication equipment manufacturing. In the consumer electronics sector, it is utilized for the loading process of smartphone motherboards and tablet PCBs. Within automotive electronics production, it facilitates the efficient loading of automotive electronic control units (ECUs) and sensor PCBs. When it comes to the manufacturing of communication devices, it meets the high-precision loading requirements for base station PCBs, ensuring the efficiency and stability of products during the production process.
Company Introduction
Huidiya Electronics Technology Co., Ltd.
A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China.As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.
Core Competencies
Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.
End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.
Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.
Product Portfolio
Our extensive range of standardized and customized EMA equipment includes:
SMT Handling Systems:
▪️ SMT Loader/Unloader
▪️ Transfer Station
▪️ PCB Buffer Machine
PCB Processing Equipment:
▪️ Flip Machine
▪️ PCB Cleaner
▪️ Corner Router
▪️ Vacuum Feeder
Quality Control Systems:
▪️ NG/OK Screening Machine
▪️ Automated Inspection Station
Specialized Machinery:
▪️ Stacker/Conveyor System
▪️ Customized Transfer Solutions
Customization Services
We specialize in tailored EMA solutions to meet unique production requirements, including:
Modular Design: Configurable workstations for diverse PCB sizes and component densities.
Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.
Rapid Prototyping: Accelerated development cycles for new product launches.
Why Partner With Huidiya?
Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.
Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.
After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.
Contact Us Today
Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:
Email: [email protected]
Tel: +86-13143286318
FAQ
Is the equipment complicated to install?
The equipment comes with detailed installation instructions and professional after-sales installation support. Usually, with the guidance of technicians, the installation and debugging can be completed quickly without complicated operations.
Is the equipment maintenance cost high?
Thanks to the use of high-quality electrical components, the equipment has strong stability and a low failure rate. The daily maintenance mainly involves regular cleaning and inspection of key components, so the maintenance cost is relatively low.
Can it be adapted to PCB boards of different sizes?
This equipment can be adapted to PCB boards with a maximum specification of L350×W250. For PCB boards of different sizes within this range, We can also customize the machine according to the maximum width of your PCB board.。
