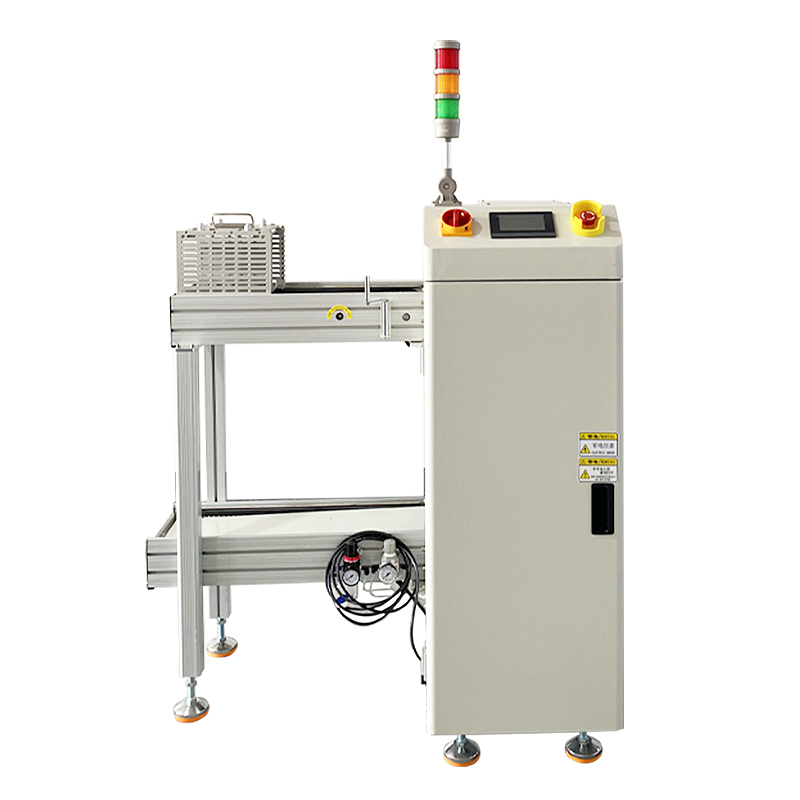

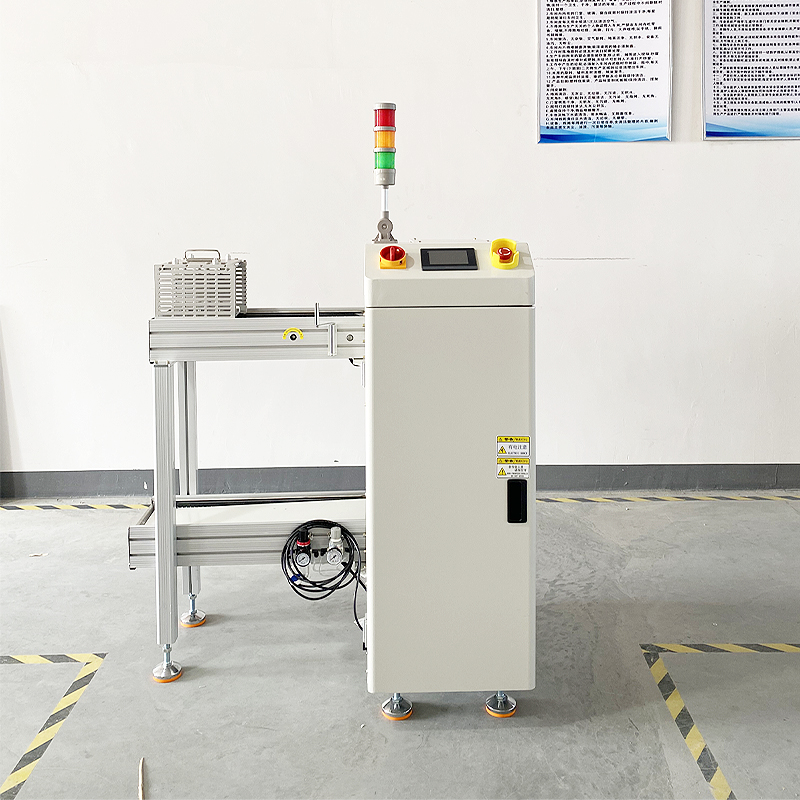

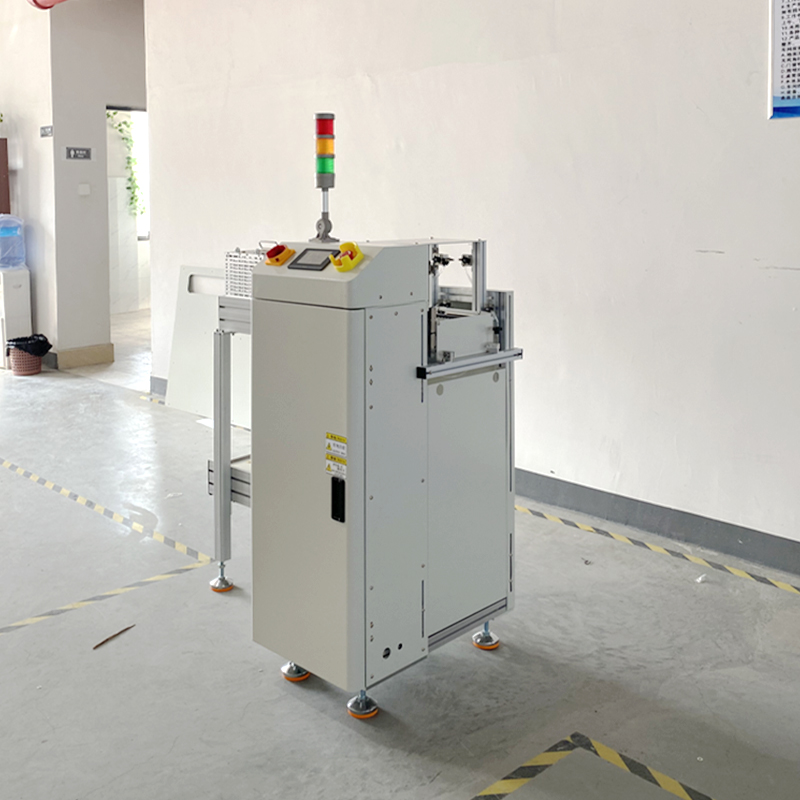

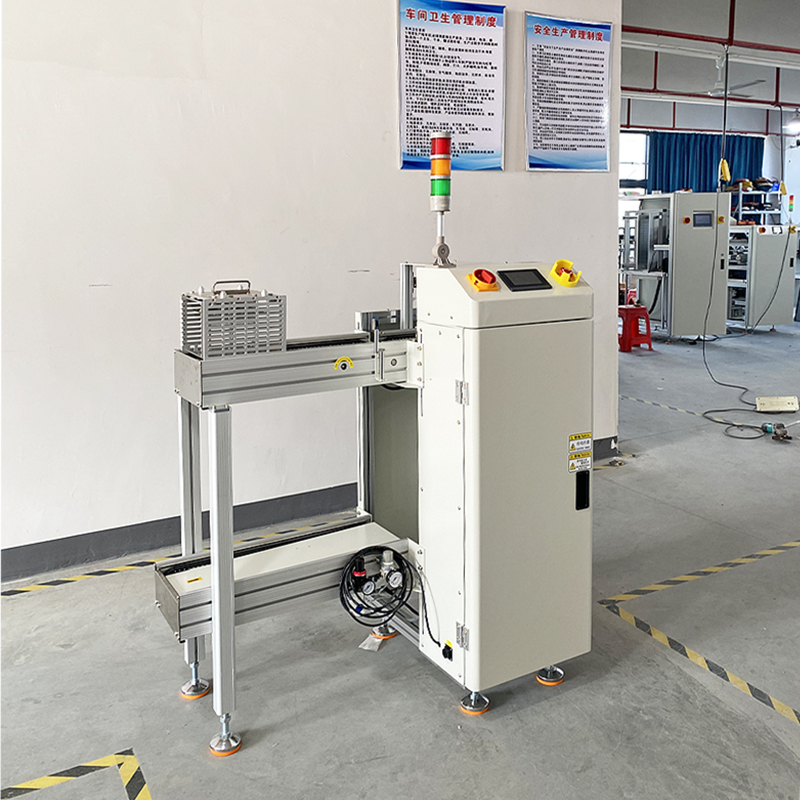

The SMT Bullet Magazine Loader Machine is a highly efficient automated device designed specifically for SMT production lines.
Equipment Parameters
| Dimensions: L845mm × W956mm × H1150mm |
| Guide Rail and Chain: Specialized aluminum profile guide rail and pigeon-type plastic chain |
| Drive System: 90W Taiwan brake motor with ball screw for stepwise elevation of the magazine |
| Transfer Motor: 15W constant speed TaTransfer Motor: 15W constant speed Taiwan motoriwan motor |
| Clamping Structure: Pneumatic clamping structure |
| Magazine Specifications: Customizable according to customer requirements |
| Maximum PCB Size: L330mm × W250mm |
| Transfer Direction: Left to right |
| Elevation Platform Pitch: Selectable at 10mm, 20mm, 30mm, 40mm |
| Transfer Height: H=920±30mm |
| Control System: Inovance PLC programmable controller |
| Operation Interface: Color touch screen |
| Pneumatic Components: Position of the push plate cylinder can be adjusted via a ball screw |
| Power Supply: 220V, 50Hz |
| Air Supply: 0.4-0.6MPa |
| Maximum Loaded Board Quantity: Customizable according to customer magazine requirements |
| Control Box: One set |
| Main Electrical Components: Mingwei power supply, Omron relays |
Product Introduction
The SMT Bullet Magazine Loader Machine is a highly efficient automated device designed specifically for SMT production lines. It aims to achieve rapid and precise loading of PCB boards. Through advanced control technology and a stable mechanical structure, this device significantly improves production efficiency and reduces labor costs. It adopts a pneumatic clamping structure and a special plastic chain with a thousand - bird pattern for transmission, ensuring the stability and reliability of PCB boards during the transmission process. The operation control panel uses a full - color touch screen by Xiankong, with a simple and intuitive interface for easy operation. Operators can easily set parameters and monitor the device. At the same time, the device has an automatic board - loading function, reducing manual intervention and effectively avoiding production errors caused by improper manual operation.
Product Advantages
1.Stable Performance: It uses high - quality Taiwan - produced motors and well - known brand electrical components such as Mean Well power supply and Omron relays, ensuring stable and reliable performance during long - term operation of the device, reducing the probability of failures and maintenance costs.
2.High Precision: The ball screw drives the Magazine to step - by - step lift, and with the precise pitch selection, it can achieve high - precision PCB board loading, meeting the strict requirements of SMT production for accuracy.
3.Strong Customizability: The Magazine specification and full - load board storage quantity can be customized according to customer requirements, which can better adapt to the production needs of different customers and improve the versatility and applicability of the device.
4.Easy to Operate: The operation panel with a Xiankong full - color touch screen has a user - friendly interface and is easy to understand and operate. No professional training is required, which greatly improves production efficiency.
5.High Cost - Performance: On the premise of ensuring product quality and performance, our product price is competitive, providing customers with cost - effective solutions and helping customers reduce production costs.
Application
The SMT Bullet Magazine Loader is widely used in SMT production lines in the electronics manufacturing industry, such as in the production of electronic products like mobile phones, computers, and tablet computers. It can quickly and accurately transport PCB boards to the designated position, providing efficient board - loading support for subsequent processes such as soldering and chip - mounting, effectively improving the production efficiency and product quality of the entire SMT production line.suitable for the production of various types of PCBs. It can seamlessly integrate with SMT pick-and-place machines, reflow ovens, and other equipment to achieve automated PCB transfer and production. This equipment is particularly suitable for high-efficiency, large-scale PCB production environments, significantly improving production efficiency, reducing production costs, and enhancing the market competitiveness of enterprises.
Company Introduction
Huidiya Electronics Technology Co., Ltd.
A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China.As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.
Core Competencies
Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.
End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.
Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.
Product Portfolio
Our extensive range of standardized and customized EMA equipment includes:
SMT Handling Systems:

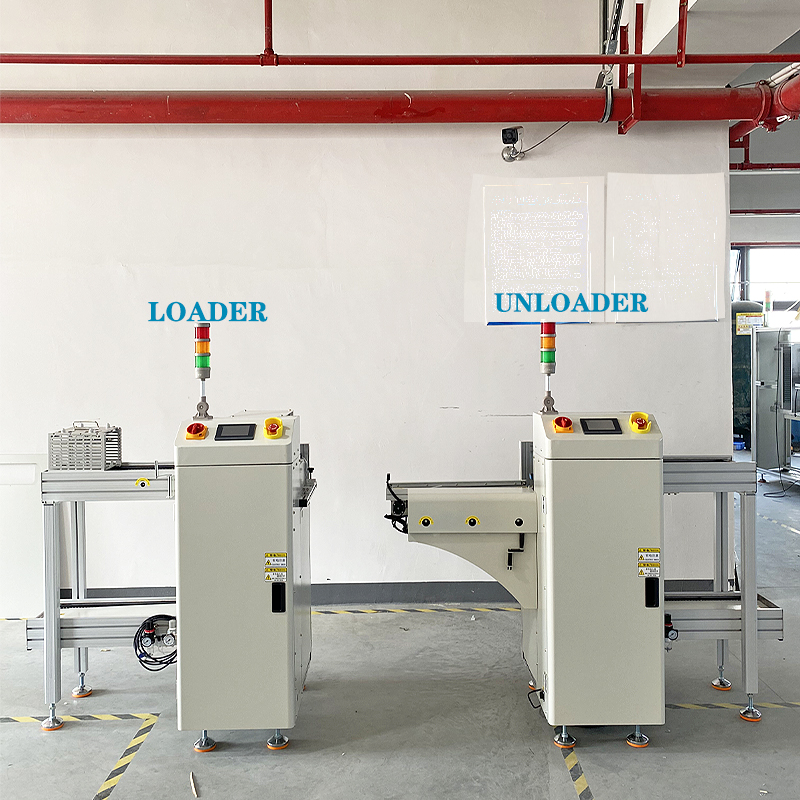

▪️ SMT Loader/Unloader
