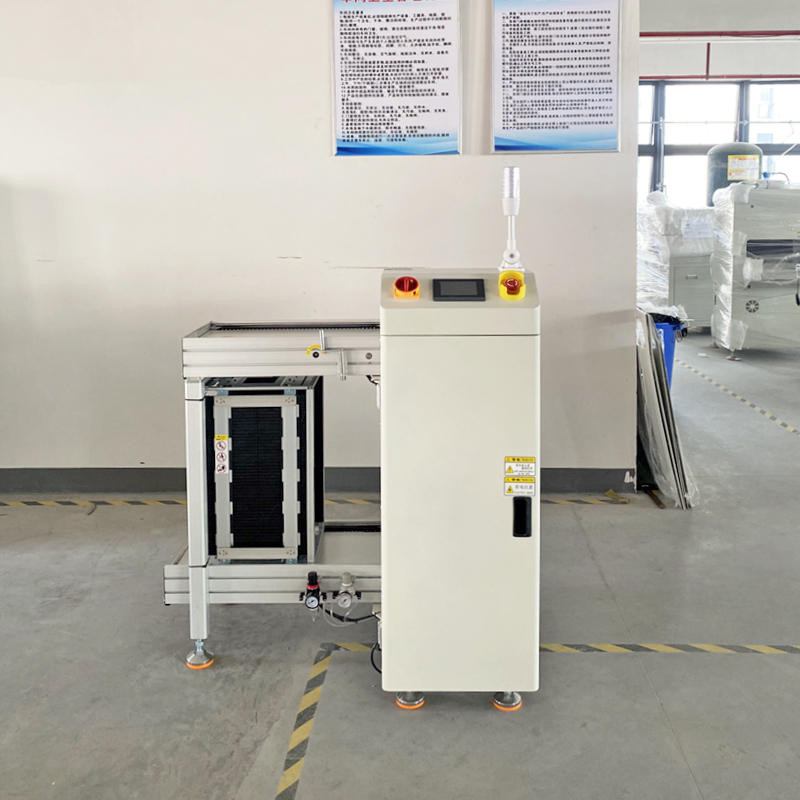

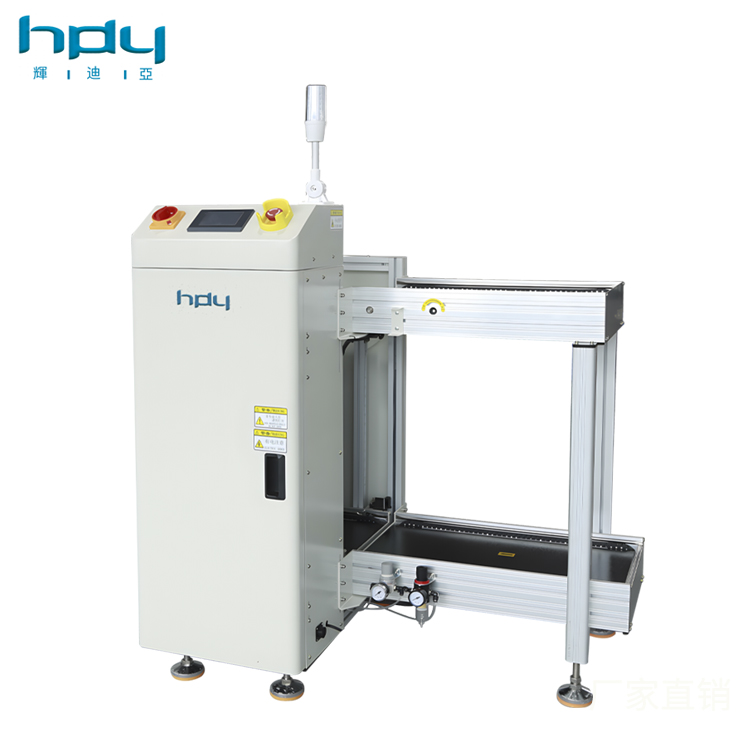

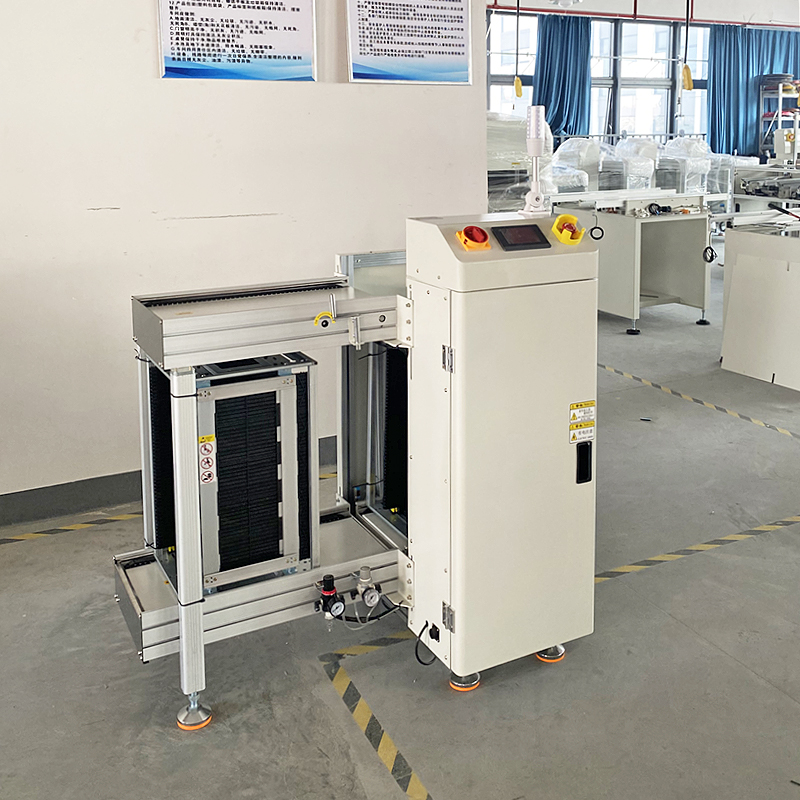

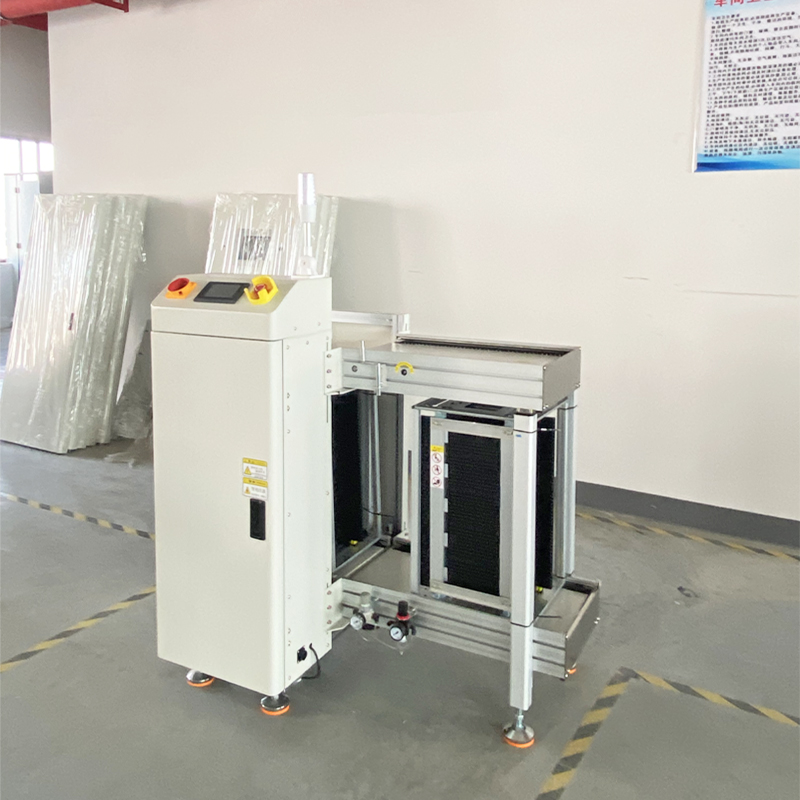

The HDY-J250SB Loader is an efficient automatic board-loading equipment specially designed for SMT production lines by our company. Equipped with advanced mechanical structures and electrical control systems, the device features precision, stability, and high efficiency, significantly enhancing the automation level and production efficiency of the production line.
Equipment Parameters
| Parameter Items | Parameter Details |
| Overall Dimensions | L1100*W780*H1200±30mm |
| Guide Rails and Chains | Special aluminum profile guide rails and special thousand-bird-shaped plastic chains |
| Magazine Lifting Drive | Driven by a 90W brake motor, using a ball screw to make the Magazine step up and down |
| Transmission Motor | 15W constant-speed motor |
| Clamping Structure | Pneumatic clamping structure |
| Magazine Specification | L355W320H565mm |
| Maximum PCB Specification | L330*W250mm |

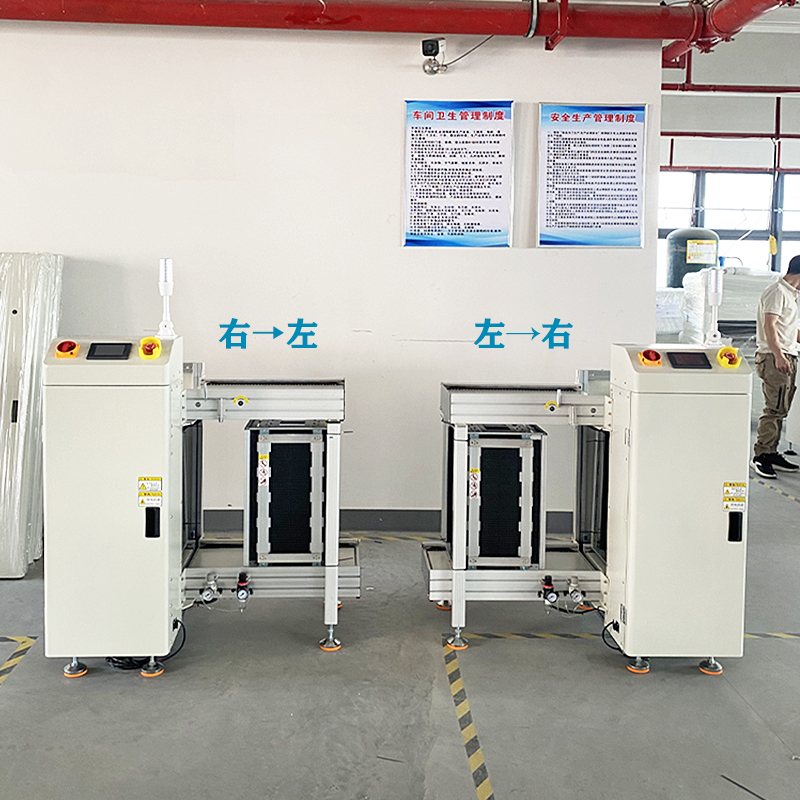

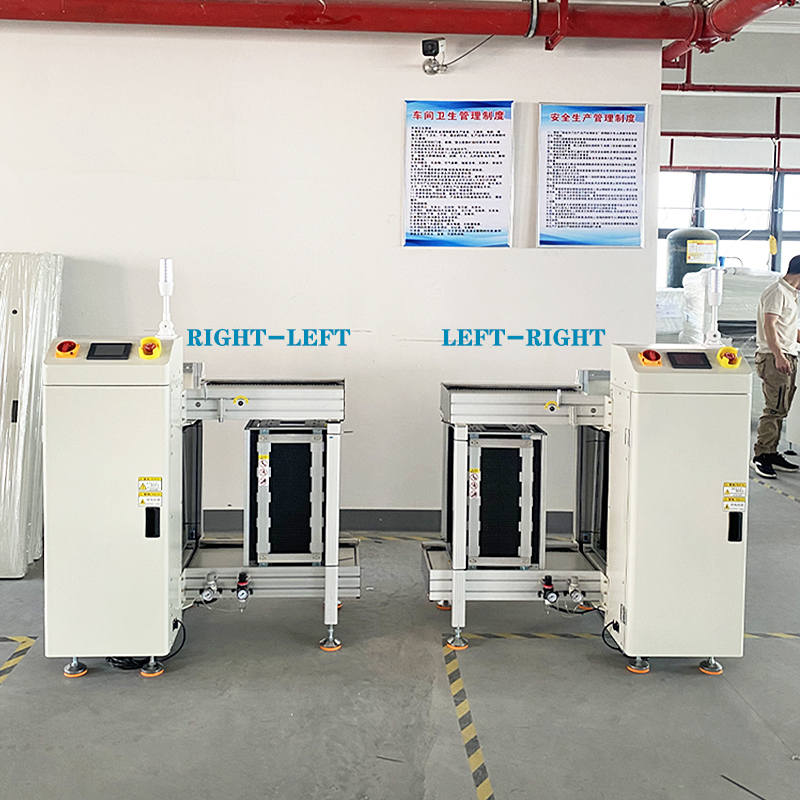

| Transmission Direction | From left to right |
| Lifting Platform Pitch | Optional: 10, 20, 30, 40 |
| Transmission Height | H=920±30mm |
| Control Method | Controlled by a PLC programmable controller |
| Operation Panel | Xiankong true-color touch screen |
| Pneumatic Components | The position of the push plate cylinder is adjusted by a screw rod |
| Power Supply | 220V 50HZ |
| Air Source | 0.4 - 0.6MPa |
| Full-load Board Storage Quantity | 50PCS |
| Electrical Control Box | One set |
The parameter specification for this table is 250 board machine. The size specification for the material frame is L355 * W320 * 565mm, and the maximum compatible PCB specification is L330 * W250mm. Our company also has other board machine specifications For example, the size specification of the material frame on the 330 board machine is L460 * W400 * 565mm, and the maximum compatible PCB size is L450 * W330mm. The size specification of the material frame on the 390 board machine is L535 * W460 * H565mm, and the maximum compatible PCB size is L530 * W390mm. The size specification of the material frame on the 460 board machine is L535 * W530 * H565mm, and the maximum compatible PCB size is L525 * W460mm.
Product Introduction
The HDY-J250SB Loader is an efficient automatic board-loading equipment specially designed for SMT production lines by our company. Equipped with advanced mechanical structures and electrical control systems, the device features precision, stability, and high efficiency, significantly enhancing the automation level and production efficiency of the production line. Through integrated design, the HDY-J250SB Loader achieves full-process automation from PCB board loading, transmission to positioning, providing strong support for the stable operation of SMT production lines.
Product Advantages
Compared to products in the same industry, the HDY-J250SB Loader has the following significant advantages:
1.High-precision Positioning: The adoption of advanced PLC control systems and precise mechanical structures ensures high accuracy during PCB board loading, transmission, and positioning.
2.High Efficiency and Stability: Through optimized design and the selection of high-quality components, the equipment exhibits excellent stability and durability, reducing failure rates and downtime.
3.Easy Operation: The true-color touch screen operation panel features a user-friendly design, making operation simple and quick.
4.Strong Compatibility: Supports multiple specifications of PCB boards and Magazines, meeting diverse production needs.
5.Excellent Service: Provides professional pre-sales consultation, mid-sales installation guidance, and after-sales technical support, ensuring customers can use the product without worries.
Application
The HDY-J250SB Loader is widely used in SMT production lines in the electronics, communications, automotive, medical, and other fields. It is suitable for various scales of production lines, from small laboratory production lines to large industrial automation production lines. Whether it is precision electronic component placement requiring high speed and accuracy, or large-scale, continuous production of electronic products, the HDY-J250SB Loader can provide stable and efficient support.
SMT Line Integration: Seamless connection with screen printers, SPI systems, and pick-and-place machines.
High-Mix Low-Volume Production: Supports rapid PCB format changes via quick-release magazine clamps.
Sensitive Component Handling: Anti-static design ensures safe transport of MEMS, sensors, and other delicate devices.
24/7 Operation: Reliable performance in continuous production environments (e.g., consumer electronics, automotive PCBs).
Company Introduction
Huidiya Electronics Technology Co., Ltd.
A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China.As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.
Core Competencies
Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.
End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.
Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.
Product Portfolio
Our extensive range of standardized and customized EMA equipment includes:
SMT Handling Systems:
SMT Loader/Unloader
Transfer Station
PCB Buffer Machine
PCB Processing Equipment:
Flip Machine
PCB Cleaner
Corner Router
Vacuum Feeder
Quality Control Systems:
NG/OK Screening Machine
Automated Inspection Station
Specialized Machinery:
Stacker/Conveyor System
Customized Transfer Solutions
Customization Services
We specialize in tailored EMA solutions to meet unique production requirements, including:
Modular Design: Configurable workstations for diverse PCB sizes and component densities.
Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.
Rapid Prototyping: Accelerated development cycles for new product launches.
Why Partner With Huidiya?
Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.
Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.
After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.
Contact Us Today
Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:
Email: [email protected]
Tel: +86-13143286318
FAQ
Q1: What is the maximum PCB board size supported by the HDY-J250SB Loader?
A1: The maximum PCB board size supported by the HDY-J250SB Loader is L330*W250mm.
Q2: Does the equipment require professional personnel for installation and maintenance?
A2: Yes, to ensure the normal operation of the equipment and extend its service life, we recommend that professional personnel perform the installation and maintenance.
Q3: What kind of after-sales service do you provide when the equipment malfunctions?
A3: We provide a professional after-sales service team. When the equipment malfunctions, we will respond promptly and provide corresponding technical support and repair services.
Q4：Can the equipment be customized?
A4：Yes. We can customize the design of some parameters and functions of the equipment according to the special requirements of customers, such as magazine size, transmission direction, etc., to meet the production requirements of different customers.
Q5：Is the equipment difficult to maintain?
A5:No. The equipment adopts a standardized design and a structure that is easy to maintain. Daily maintenance mainly includes cleaning, lubrication, and checking the wear of key components. We also provide professional after-sales service and technical support to ensure that problems encountered by customers during use can be solved in a timely manner.
Q6：What is the approximate service life of the equipment?
A6:Under normal use and maintenance conditions, the service life of the equipment can reach 5 - 8 years. We use high-quality components and materials to ensure the reliability and durability of the equipment. At the same time, we also provide equipment upgrade and transformation services to extend the service life of the equipment.
