Essential for SMT Efficient Precise 350 Stacked Board Loader

Equipment Parameters

Product Introduction

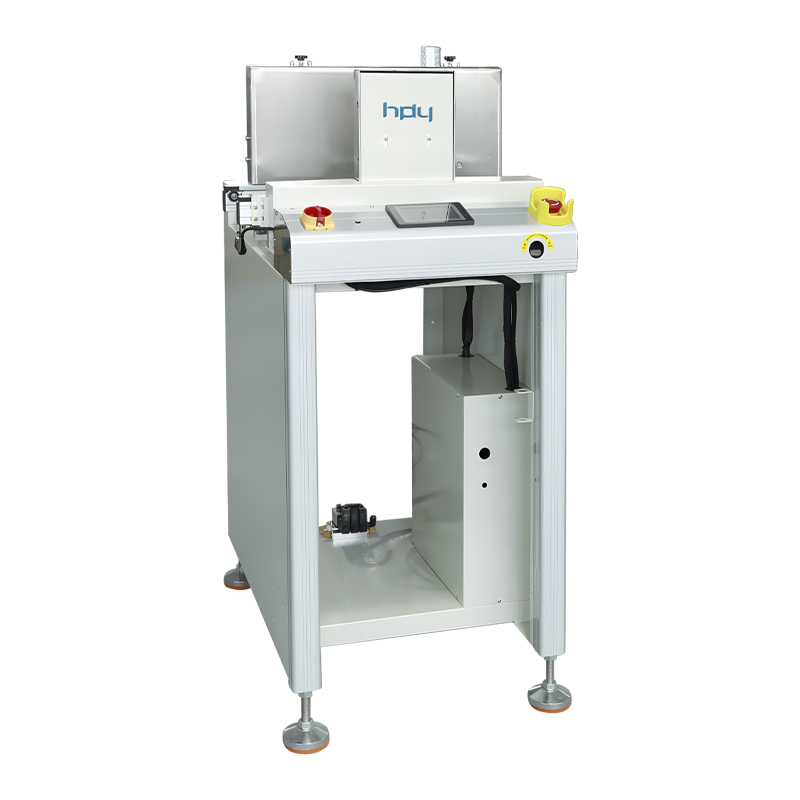

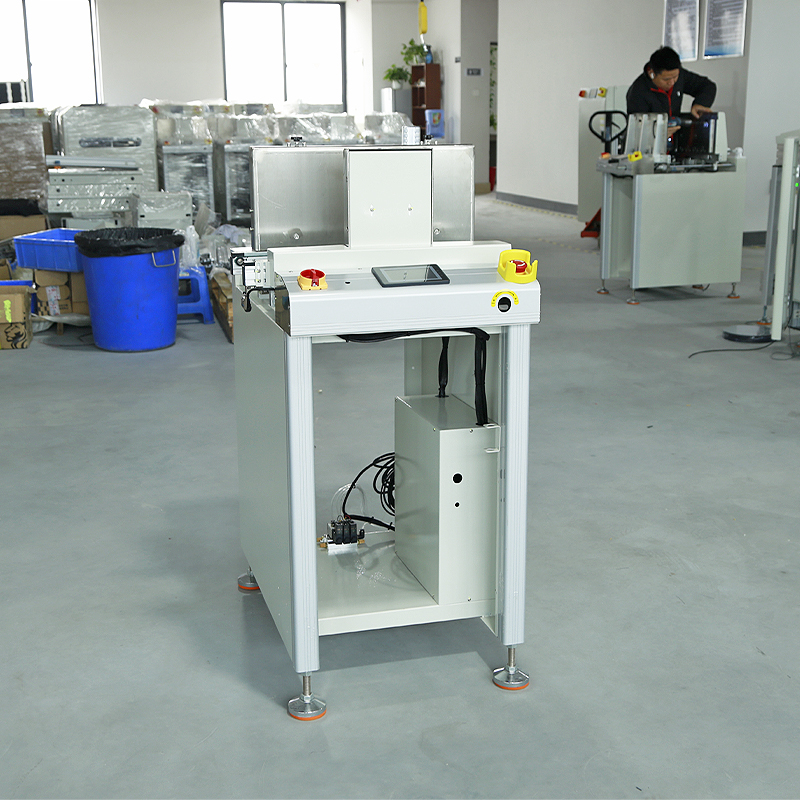

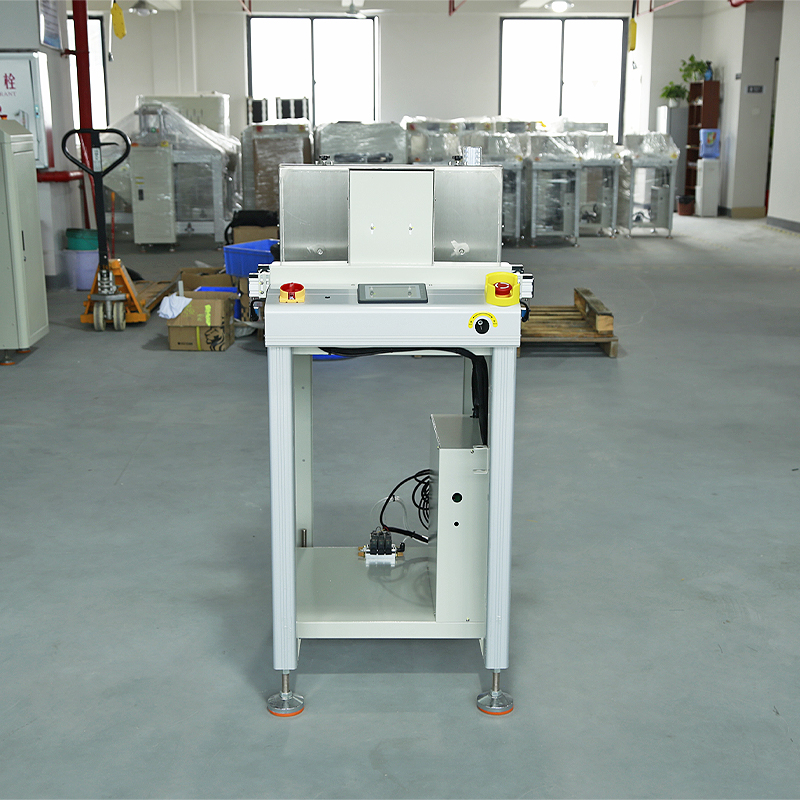

The HDY-J350DS Stacked PCB Loader is a core equipment for intelligent front-end processing in SMT lines, providing standardized PCB substrate feeding solutions for high-precision placement processes. Featuring industrial-grade closed-loop control system integrating photoelectric sensing and pneumatic actuators, it ensures precise positioning and transmission of PCBs ranging from 50×50mm to 500×350mm, achieving seamless integration with subsequent SPI inspectors and placement machines. Critical components adopt Omron industrial relays and Mean Well voltage stabilization modules, guaranteeing 24/7 operational stability.

Product Advantages

1.Precise and Stable Conveying System: Driven by a stepping motor, compared with ordinary motors used by some competitors, it has higher positioning accuracy. It can effectively prevent problems such as deviation and jamming during the board loading process, ensuring that each PCB board is accurately delivered to the designated position, improving production accuracy and product quality.

2.High-Quality and Durable Materials: The frame is made of δ1.5 cold-rolled sheets with powder-coated computer white treatment, which has strong corrosion resistance and extends the service life of the equipment. The parts for the board stacking action are made of aluminum alloy, which reduces the weight of the equipment while ensuring strength, reducing energy consumption during operation and maintenance costs.

3.Flexible Speed Adjustment Function: The speed of the conveyor belt is adjustable. It can flexibly adjust the board loading speed according to different production processes and product requirements, improving production efficiency and adapting to diverse production scenarios. Some competitor products may have limited speed adjustment ranges or inconvenient adjustment methods.

4.Stable Electrical System: The use of Mean Well power supplies and Omron relays ensures stable and reliable electrical performance, reducing equipment downtime caused by electrical failures and ensuring production continuity. Compared with some competitor products using ordinary electrical components, it has more advantages in terms of stability and reliability.

Application

This product is widely used in various SMT production lines, especially suitable for the board loading of bare PCBs in the production of PCBs by electronics manufacturing enterprises. Whether in the production of PCBs for consumer electronics, automotive electronics, or industrial control, the 350 Stacked Board Loader (HDY-J350DS) can provide strong support for enterprises to improve production efficiency and reduce production costs with its stable performance and precise board loading capabilities.

Automotive Electronics: Bulk feeding for ADAS controller boards (FR4/2.0mm thickness)

Consumer Electronics: ESD-safe handling of flexible PCBs

Industrial Control: Precision feeding for heavy copper boards (3oz)

Medical Electronics: Compliant with ISO Class 5 cleanroom standards

Company Introduction

Huidiya Electronics Technology Co., Ltd.A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China .As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to ​technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.

Core Competencies

Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.

​End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.

Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.

Product Portfolio

Our extensive range of standardized and customized EMA equipment includes:

SMT Handling Systems:

SMT Loader/Unloader

Transfer Station

PCB Buffer Machine

​PCB Processing Equipment:

Flip Machine

PCB Cleaner

Corner Router

Vacuum Feeder

​Quality Control Systems:

NG/OK Screening Machine

Automated Inspection Station

​Specialized Machinery:

Stacker/Conveyor System

Customized Transfer Solutions

Customization Services

We specialize in tailored EMA solutions to meet unique production requirements, including:

Modular Design: Configurable workstations for diverse PCB sizes and component densities.

Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.

Rapid Prototyping: Accelerated development cycles for new product launches.

Why Partner With Huidiya?

Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.

Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.

​After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.

Contact Us Today

Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:

Email: [email protected]

Tel: +86-13143286318

FAQ

Can the equipment be compatible with PCB boards of different thicknesses?

This equipment is mainly designed for PCB boards within the size range of (L50W50)-(L500W350). For common PCB board thicknesses, it can generally be used normally without special adjustment. However, if the thickness of the PCB board exceeds the normal range, it may be necessary to contact our technical personnel for evaluation and adaptation.

How to quickly troubleshoot when the equipment fails?

The equipment is equipped with three-color lights, and the operating status of the equipment can be preliminarily judged through the lights of different colors. If the equipment fails, first check the prompt of the three-color lights. Red usually indicates a fault alarm. Then check whether there are error codes displayed on the PLC control interface and find the cause of the fault according to the code prompt. If you cannot solve it by yourself, you can contact our after-sales technical support team, and we will provide remote or on-site technical support in a timely manner.

What is the maintenance cycle of the equipment?

The recommended maintenance cycle for the equipment is a weekly routine cleaning and inspection, mainly checking whether the conveyor belt is worn or loose, whether the connecting parts are firm, and whether the electrical connections are normal. A deep maintenance is carried out every three months, including lubrication and debugging of key components such as stepping motors and cylinders to ensure the long-term stable operation of the equipment.

Does it support non-standard PCB shapes?

Standard model handles rectangular boards. Custom guides available for round-corner/notched boards (+5WD lead time)

Communication with legacy lines?

Standard RS485/MODBUS interface compatible with major placement machines (ASM/SIEMENS/FUJI)
