Source: Dongguan Huidiya Electronic Technology Co., Ltd. – Technical Center | Release Date: July 2026
In the overall configuration of an SMT line, pick-and-place machines, printers, and reflow ovens have long been regarded as the "main players," while peripheral equipment such as board loaders/unloaders, conveyors, buffer stations, and NG repair buffers are often categorized as supporting components — mere "iron frames with belts." However, in recent years, driven by the increasing size of AI server motherboards, the higher reliability requirements of automotive electronics, and the cleanliness sensitivity of MiniLED production lines, peripheral equipment has become a bottleneck for certain high-end lines. Transport accuracy, buffering capacity, ESD control, and data connectivity — every aspect is being redefined.
According to public market statistics, the domestic SMT peripheral equipment market now features three generations of products coexisting, with the third generation rapidly replacing older ones (based on newly added production lines in 2024):
| Generation | Positioning Accuracy | Share of New Lines (2024) | Characteristics |
| Gen 1: Fully Mechanical | ±1.5 mm | ~27% | Gradually phased out of high-end lines |
| Gen 2: Mechatronic Integration | ±0.1 mm | Formerly ~68% | Data silos, higher power consumption |
| Gen 3: Intelligent Collaboration | ±0.02 mm | 41% (estimated ~55% in 2025) | Edge computing + machine vision + digital twin |
The shift from millimeter-level to sub-millimeter-level accuracy reflects the practical pressure faced during transport of large AI server boards (up to 1200×600 mm, 6 mm thick), where even minor coordinate drift can propagate to the placement process.
1. Board Loader/Unloader: Heavy-Duty Adaptation and Suction-Feed Integration
The core function of traditional board loaders/unloaders is simply moving boards from magazines to the conveyor line. Current technological upgrades focus on two main areas:
Suction-feed integrated design: Combines vacuum suction with magazine loading, reducing gripper adjustment time in high-mix, low-volume scenarios.
Heavy-duty large-size adaptation: For large, heavy boards used in AI servers and automotive power modules, some manufacturers use servo edge-clamping with air-floating support instead of traditional belt transport to reduce coordinate deviation caused by board sagging.
ESD closed-loop control: Integrated ion blowers with real-time static voltage monitoring; this is already a common requirement in automotive electronics lines.

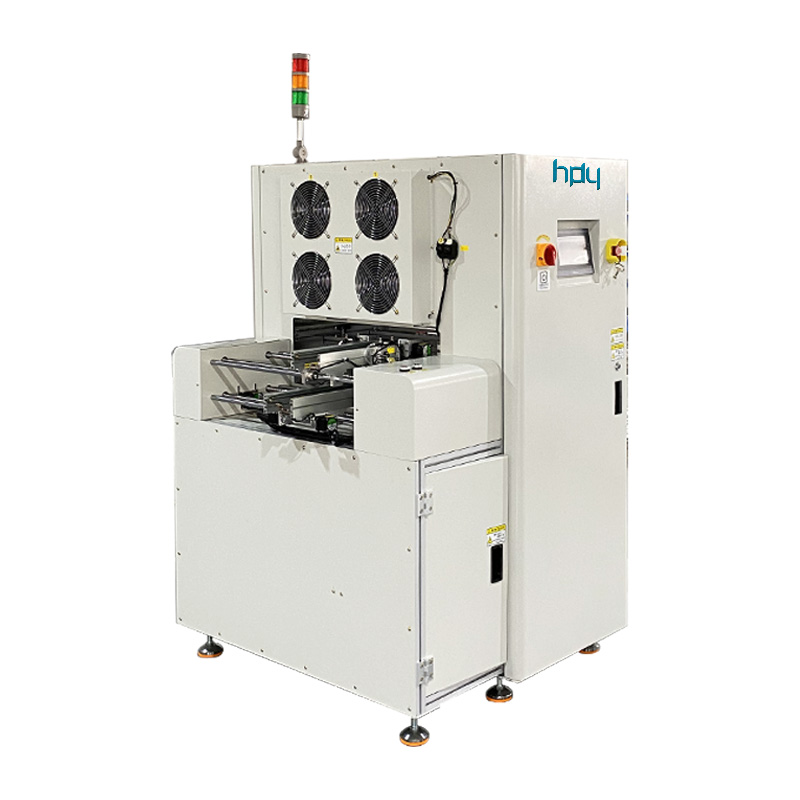

2. Conveyor Module: Upgrading from "Board Transfer" to "Production Line Data Node"
Positioned between printing, placement, reflow, and inspection, the conveyor module handles pitch matching, buffering, flipping, and counting. Recent domestic upgrade directions include:
Dynamic buffer expansion: Servo-driven solutions increase buffer capacity from the traditional 8 boards to over 20, mitigating full-line stoppage risks during component reel changes or reflow oven fluctuations.
Dual-lane independent diversion: Enables mixed-model production with different board numbers, achieving inter-board spacing as tight as 50 mm.
Integrated flipping and counting: Flipping mechanisms for double-sided boards and photoelectric counters are embedded into the conveyor body, eliminating additional workstations.
Changeover efficiency: Automatic rail width adjustment completed within seconds; recipe management supports storage of dozens of parameter sets for fast-response, small-batch orders.
Transport accuracy: Some top-tier EMS lines now incorporate conveyor positioning into the overall line accuracy chain, co-designed with linear motors, glass scales, and Invar bases.
3. Buffer Stations, NG Repair, and Pre/Post-Reflow Workstations
Shuttle-type buffers replace traditional stacking buffers, with pre/post-reflow capacities reaching 50–100 boards.
NG sorting linkage: AOI results are linked with MES barcodes, enabling automatic diversion of boards requiring repair.
Integrated temperature profiling: Conveyors before and after reflow ovens reserve thermocouple lead-out ports, reducing line stoppages for temperature testing.
4. "Hidden Upgrades" of Auxiliary Peripherals
Though less prominent, these areas offer significant unit value and profit margins:
Laminar flow clean control: MiniLED and vehicle camera module lines install laminar flow hoods at printing and conveyor positions, pushing particle control toward ISO Class 6 standards.
Embedded static elimination: Ion bars built into guide rails with real-time static voltage feedback to MES, replacing external ion blowers.
Selective wave soldering loading/unloading: Fixture recognition combined with board thickness pre-check to prevent nozzle collisions.
5. Protocol Layer: OPC UA over TSN Becomes a Watershed
The next phase of differentiation for peripheral equipment will increasingly lie in protocols and data layers. According to standard SJ/T 11892-2023 and related government subsidy guidelines for digital transformation, equipment not supporting OPC UA over TSN may be disadvantaged in certain project bids starting in 2025. Key requirements typically include:
Native SECS/GEM integration: Interconnection with pick-and-place machines, printers, and MES for line-level cycle scheduling.
OPC UA over TSN: Time-sensitive networking across brands (including both global leaders and domestic pick-and-place machine manufacturers).
Multi-protocol adaptive modules: Compatibility with legacy equipment in factory retrofits.
Industry Outlook
The competitive landscape for SMT peripheral equipment is shifting from "mechanical precision + belt lifespan" toward "transport nodes + data interfaces + process data services." Domestic manufacturers hold certain advantages in ROS2/RTOS iteration speed, customization for high-mix/low-volume production, and software subscription models. Global industry leaders, while slower to innovate on unified global platforms, still dominate the premium segment above ¥150,000. The next phase of market share shifts will most likely favor vendors that can deliver proven track records across all three dimensions simultaneously: ±0.02 mm accuracy + OPC UA over TSN + heavy-duty large-board capability.
(This article presents observations on industry technology trends based on publicly available information and industry research. It does not constitute a recommendation or evaluation of any specific manufacturer.)
