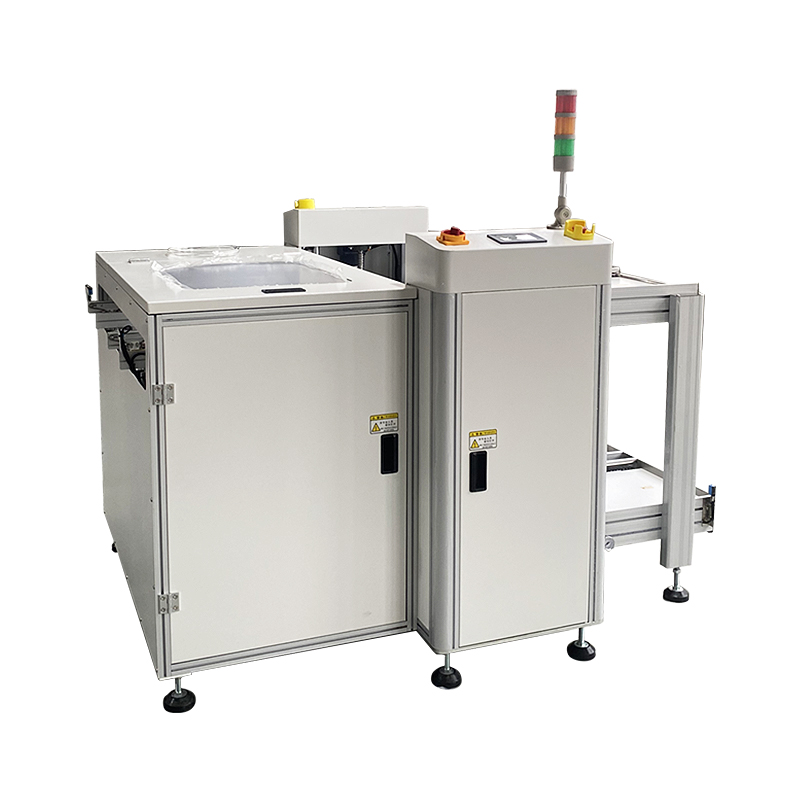

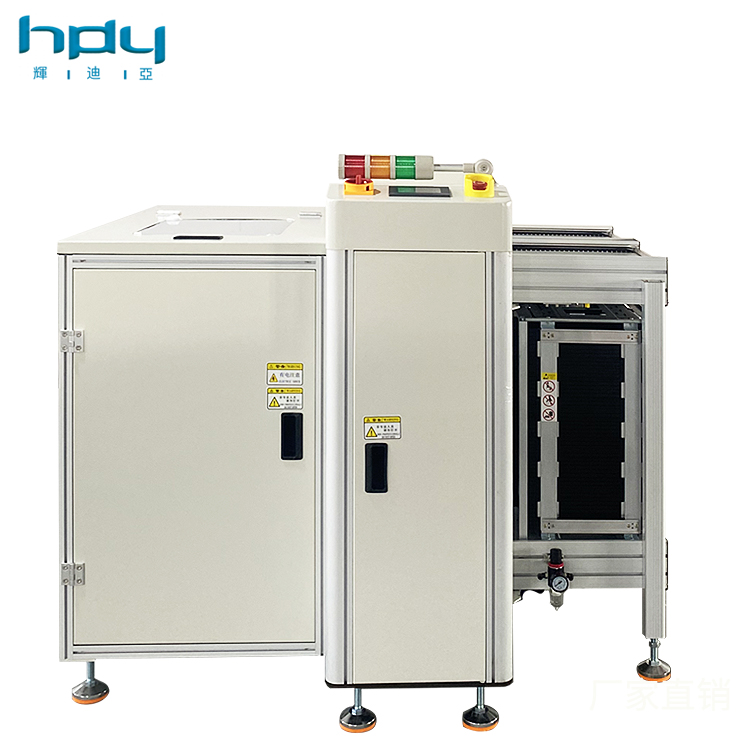

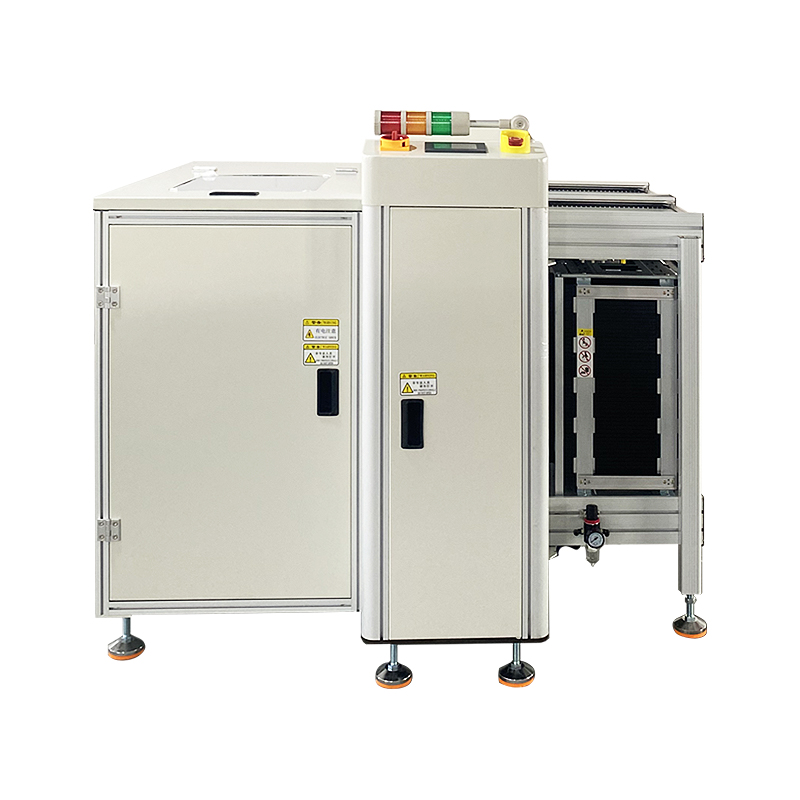

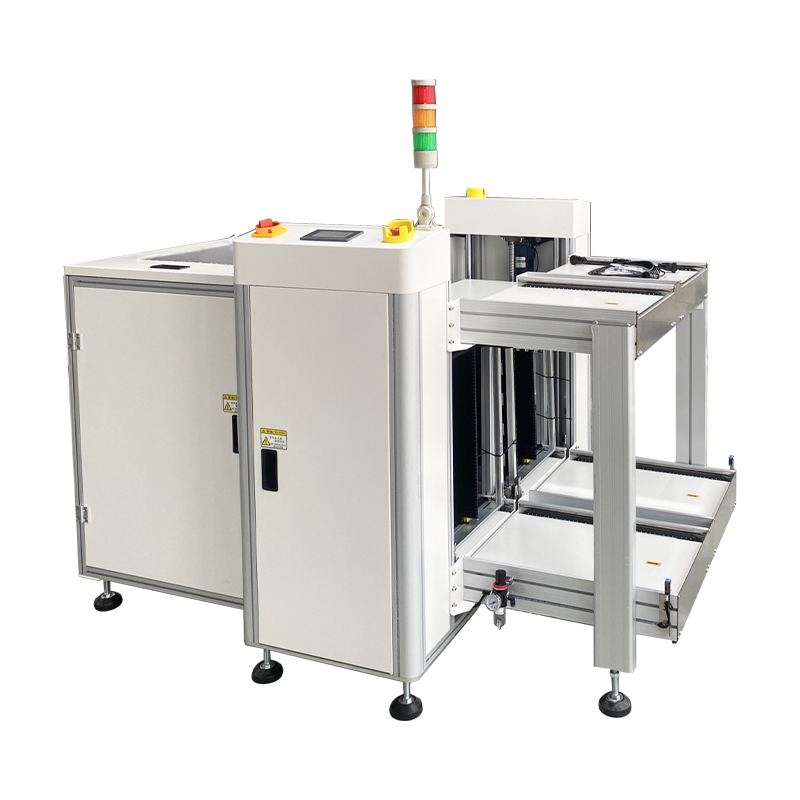

The HDY-Dual Rail Board Collector HDY-J250SSB1 is an automated board collecting solution tailored for SMT dual-rail production lines. The device uses a 90W Taiwanese motor-driven ball screw to achieve step-by-step lifting of the magazine, combined with an AirTAC pneumatic clamping structure and a 0.65M transfer pusher conveyor to stably collect PCB boards up to L330×W250mm in size.
Equipment Parameters
| Parameter Items | Parameter Details |
| Model | HDY-Dual Rail Board Collector HDY-J250SSB1 |
| Dimensions | L1500×W1500×H1270mm |
| Guide Rail & Chain | Special national standard frosted aluminum profile guide rail + thousand-bird plastic chain |
| Drive System | 90W Taiwanese motor + ball screw (magazine step lifting) |
| Clamping Structure | AirTAC pneumatic clamping |
| Pusher Conveyor | Included 0.65M transfer pusher conveyor |
| Magazine Size | (W)320×(L)355×(H)570mm |
| PCB Size | Max L330×W250mm |
| Transport Direction | Left to right (track spacing customized by customer, non-adjustable after fixation) |
| Lifting Pitch | 10/20/30/40/50mm selectable |
| Control System | Inovance PLC + Taiwan Joint Venture HMIEC touch screen |
| Power/Air Supply | Single-phase 220V 50HZ / 0.4-0.6MPa, 350W power consumption |
| Electrical Components | Electric control box, Mean Well power supply, Omron relays |
| Noise Level | ≤65dB |
| Service Life | ≥5 years |
Product Introduction
The HDY-Dual Rail Board Collector HDY-J250SSB1 is an automated board collecting solution tailored for SMT dual-rail production lines. The device uses a 90W Taiwanese motor-driven ball screw to achieve step-by-step lifting of the magazine, combined with an AirTAC pneumatic clamping structure and a 0.65M transfer pusher conveyor to stably collect PCB boards up to L330×W250mm in size. Its left-to-right unidirectional transmission design adapts to dual-rail line layouts, with track spacing customizable according to customer needs (stable operation after fixation), offering both flexibility and standardized production capabilities. Controlled by an Inovance PLC and HMIEC touch screen, the device enables parameter setting, board storage monitoring, and fault alarm functions, seamlessly integrating with upstream and downstream equipment to significantly enhance board collecting efficiency and line automation.
Product Advantages
Dual-rail Synchronous Collecting, 30% Efficiency Improvement
The customized dual-rail design supports simultaneous collection of PCB boards from two rails. With the transfer pusher conveyor, one device can replace traditional single-line collecting operations, reducing manual intervention and increasing efficiency by 30%. Ideal for high-density, multi-line parallel production.
Servo-level Precision Transmission, <0.1mm Positioning Error
The combination of a 90W Taiwanese motor and ball screw enables high-precision control of magazine lifting (pitch adjustable from 10-50mm), with positioning error less than 0.1mm—superior to ordinary screw-driven devices in the industry (error ~0.3mm). Ensures no offset or collision risks for precision PCB boards.
Industrial-grade Durable Configuration, Reduced Maintenance Costs
Features frosted aluminum guide rails (wear-resistant and corrosion-proof), AirTAC pneumatic components (fast response), and Mean Well power supply + Omron relays (stable and reliable). Core components have a service life of over 5 years, with an annual failure rate below 5%, reducing maintenance costs by 40% compared to similar devices.
Intelligent Linkage, Adaptable to Flexible Production
The HMIEC touch screen supports preset board storage quantity, real-time monitoring, and self-diagnosis. It can communicate with upstream and downstream equipment (e.g., printers, pick-and-place machines) via SMEMA protocol, compatible with mixed-board production for flexible needs in automotive electronics and other fields.
Application
Core Scenarios: End-of-line board collecting in SMT dual-rail production lines, suitable for mass production in consumer electronics (mobile phone mainboards, laptop PCBs), automotive electronics (vehicle control boards, sensor modules), industrial control (industrial mainboards), and more.
Typical Applications:
Synchronous collection of identical board types on dual rails to increase single-line capacity;
Multi-rail compatibility for different board types via customized track spacing;
Integration with buffer lines and AOI inspection equipment to build fully automated collecting-inspection-warehousing workflows.
