330 Dual-Track High-Efficiency Transfer Unloader

Equipment Parameters

Product Introduction

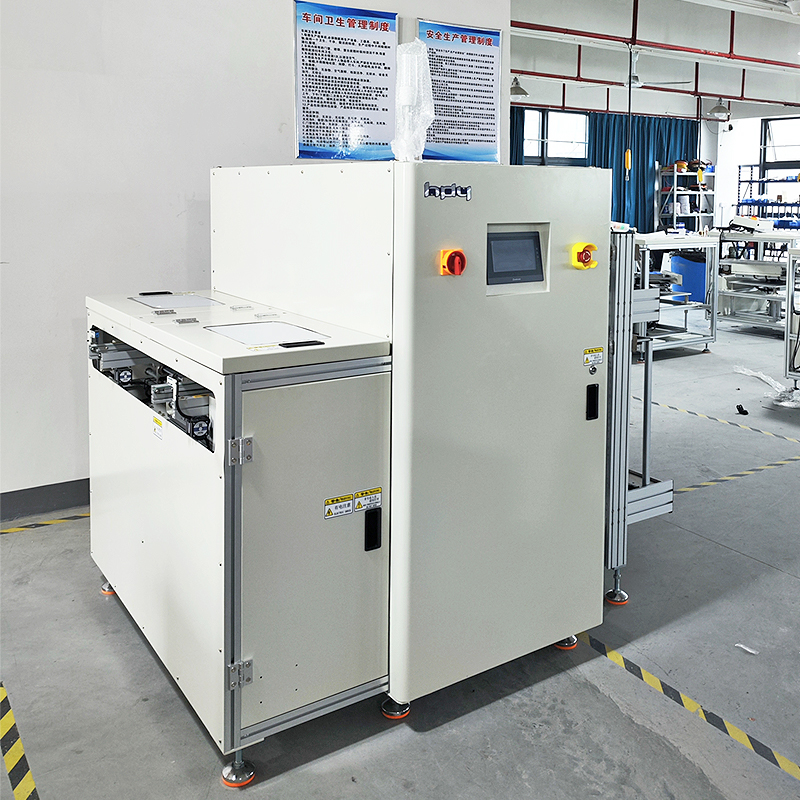

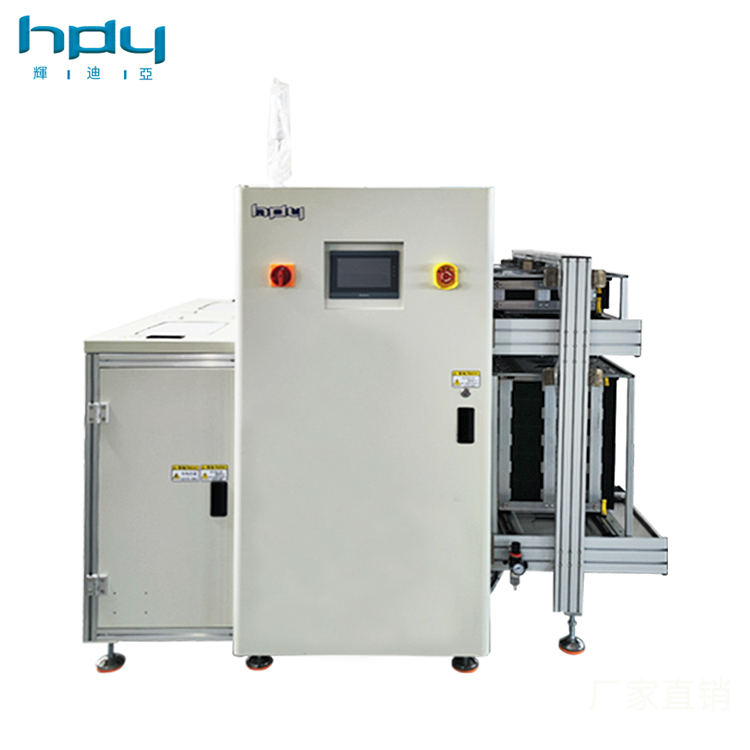

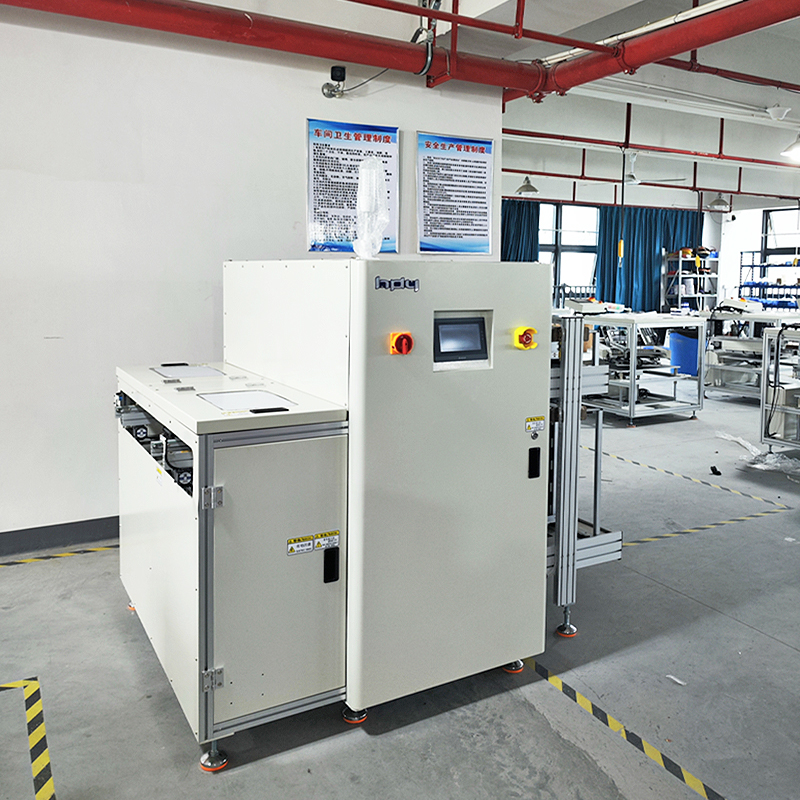

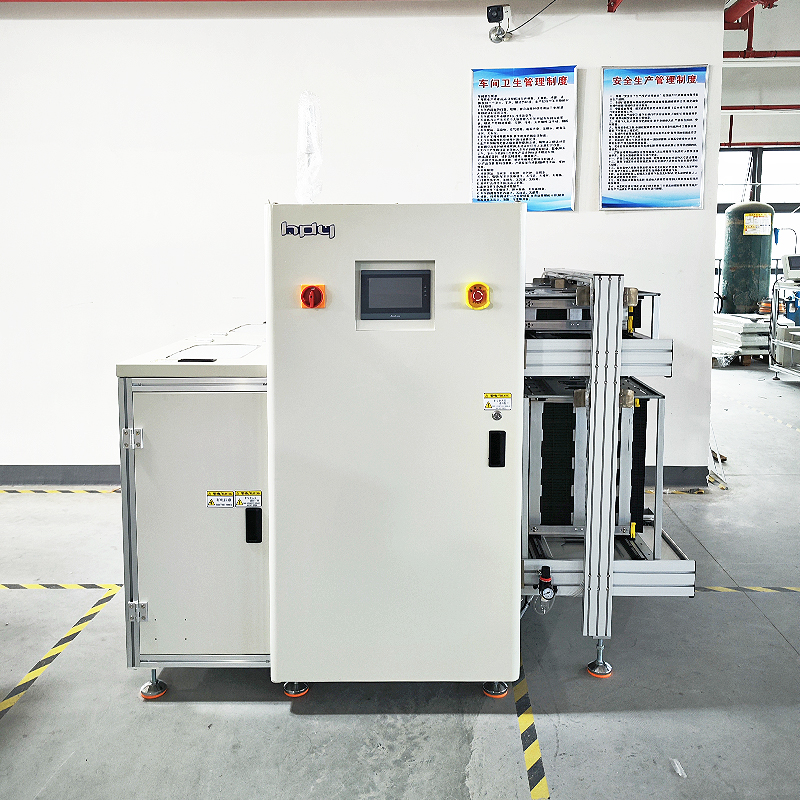

The Double - Track NG/OK - 330 UNloader, meticulously customized by Huidia, is a professional and innovative material handling device for SMT production lines. Developed in response to customers' demands for higher production efficiency, it breaks the limitations of traditional SMT double - track devices.

This equipment features an innovative design with a patented transfer mechanism added to one of the tracks. This not only allows it to support the simultaneous processing of 330mm wide PCBs on both lanes, which is 32% wider than industry standards, but also greatly enhances its processing capacity for larger - sized circuit boards.

The unloader comes with a double - track function for separating good and bad boards. Its material box has a modular design, divided into two layers. Each lower layer can store 50 good boards, and each upper layer can store 10 bad boards, effectively realizing the classified collection of PCB boards and improving the convenience and efficiency of production management.

In terms of operation and control, it uses a touch screen jointly produced in Taiwan as the operation control panel. It is powered by a Delta servo drive system and equipped with a Panasonic PLC programmable controller. This combination enables precise control of the equipment's operation, achieving ±0.1mm positioning accuracy with 10 - 50mm multi - pitch adjustment, and ensuring stable and reliable unloading operations.

Product Advantages

1.Excellent Compatibility with Large PCB Boards：Traditional SMT double - track devices generally have a track distance of 686mm and can only support PCB boards with a maximum width of 250mm passing through both tracks simultaneously. However, our Double - Track NG/OK - 330 UNloader, through its unique transfer design, can support PCB boards with a width of 330mm passing through both tracks at the same time, meeting the needs of SMT production lines for larger - sized circuit boards and far exceeding peers in terms of compatibility.

2.Efficient Classification and Collection Function：The equipment has a built - in double - track function for separating good and bad boards. The two - layer design of the material box can store good and bad boards separately. The lower layer can store 50 good boards each, and the upper layer can store 10 bad boards each. This classification and collection method greatly improves production efficiency, reduces the time and errors of manual classification, and can better optimize the production process compared with peer products.

3.Stable and Reliable Drive and Control：It uses an Inovance servo motor to drive the ball screw to achieve the step - by - step lifting of the Magazine, and is combined with a Panasonic PLC programmable controller, making the equipment operate more stably and accurately. The use of key components such as Mean Well power supplies and Omron relays further ensures the reliability and durability of the equipment, reducing the risk of equipment failure and maintenance costs.

4.Superior Operation Experience：The operation control panel uses a touch screen jointly produced in Taiwan, which has a user - friendly interface and is easy to operate. Operators can easily set parameters and monitor the equipment, improving operation efficiency and accuracy and providing users with a better user experience.

Application

The Double - Track NG/OK - 330 UNloader is widely used in various SMT production lines, especially in electronic manufacturing enterprises that produce larger - sized PCB boards. In fields such as consumer electronics, communication equipment, and industrial control, this equipment can efficiently complete the unloading and classification work, ensuring the smooth operation of the production line and improving the overall production efficiency and product quality. For example, in the production of large - scale server motherboards and high - end communication base station circuit boards, its advantages are fully demonstrated, providing strong support for enterprises to enhance their competitiveness.

Electronics Manufacturing: Ideal for consumer electronics, automotive electronics, and communication equipment manufacturing.

PCB Handling: Streamlines the handling of PCBs, particularly in the post-reflow soldering stage.

Efficiency Improvement: Reduces labor intensity and improves the stability of the production process.

Company Introduction

Huidiya Electronics Technology Co., Ltd.A Leading Provider of Electronic Manufacturing Automation (EMA) Solutions from Guangdong, China .As a specialized manufacturer dedicated to R&D, production, and sales of electronic manufacturing automation (EMA) equipment, Huidiya Electronics Technology Co., Ltd. has been headquartered in Guangdong, China, since its establishment. Over the years, we have adhered to ​technology-driven innovation, assembled world-class R&D teams, and continuously allocated resources to advance product evolution and technological breakthroughs.

Core Competencies

Profound Technical Expertise: Leveraging decades of R&D accumulation and industrial know-how, we deliver premium EMA solutions globally.

​End-to-End Solutions: From equipment design to after-sales support, we provide comprehensive services for seamless integration into production lines.

Global Partnership Network: Trusted by hundreds of electronics manufacturers worldwide, we pride ourselves on a proven track record of reliability and customer-centric innovation.

Product Portfolio

Our extensive range of standardized and customized EMA equipment includes:

SMT Handling Systems:

SMT Loader/Unloader

Transfer Station

PCB Buffer Machine

​PCB Processing Equipment:

Flip Machine

PCB Cleaner

Corner Router

Vacuum Feeder

​Quality Control Systems:

NG/OK Screening Machine

Automated Inspection Station

​Specialized Machinery:

Stacker/Conveyor System

Customized Transfer Solutions

Customization Services

We specialize in tailored EMA solutions to meet unique production requirements, including:

Modular Design: Configurable workstations for diverse PCB sizes and component densities.

Smart Integration: Compatibility with MES/ERP systems and IoT-enabled monitoring.

Rapid Prototyping: Accelerated development cycles for new product launches.

Why Partner With Huidiya?

Precision Engineering: All equipment meets IPC-610B and JESD22 standards for SMT manufacturing.

Energy Efficiency: Advanced motor drives and servo systems reduce power consumption by up to 25%.

​After-Sales Support: 24/7 technical assistance, preventive maintenance programs, and localized service centers globally.

Contact Us Today

Elevate your production efficiency with Huidiya’s cutting-edge EMA solutions. For detailed specifications, customization quotes, or factory tours, please contact our sales team:

Email: [email protected]

Tel: +86-13143286318

FAQ

1.Is the maintenance of the transfer device of the equipment complicated?

oThe transfer device is designed with maintenance convenience in mind. Daily maintenance mainly involves regular cleaning and inspection of wear in key parts. Simple maintenance can be carried out according to the operation manual. We also provide professional after - sales technical support. If you have any questions, you can contact our engineers at any time for guidance or on - site services.

2.Can the storage capacity of the material box be adjusted according to different production requirements?

oCurrently, the storage capacity of the material box is designed based on the production requirements of most customers and cannot be adjusted directly. However, if you have special storage capacity requirements, we can carry out customized modifications according to your needs to provide you with personalized solutions.

3.Does the equipment have an emergency stop function in case of a malfunction?

oThe equipment is equipped with a complete safety protection system, including an emergency stop function. When an abnormal situation occurs in the equipment, the operator can immediately press the emergency stop button, and the equipment will stop running quickly to avoid more serious losses and ensure the safety of personnel and equipment.

4.How does the 330 UNloader improve production efficiency?

oBy automating the sorting and collection of PCBs, minimizing manual handling, and increasing the speed of the production line.

5.What are the power and air requirements for the 330 UNloader?

oThe power supply is 220V 50HZ, and the air supply is 0.4-0.6MPa.
